CHINA TIPPER TRAILER MANUFACTURER
30-80Ton, 2/3/4/5/6 Axle
We will provide you with the best quality dump trailer.
Tipper trailer for sale
Benchi Heavy Industry is a manufacturer of tipper trailers located in China. We have been selling semi-trailers to African countries for more than 20 years with a total export volume of 18,000 semi-trailers. Our products are spread over more than 20 countries such as South Africa, Ghana, Zimbabwe, Zambia, Nigeria, Uganda, Namibia and so on.
Tipper trailers are used to load sand, stone, coal and other solid building materials or industrial raw materials. Rear dump semi-trailers are designed to make unloading easier. After the back of the trailer is locked, sand can be loaded. When it arrives at the destination, the front side of the semi-trailer can be raised, which makes the goods drop from the back. The bucket of the trailer requires a thicker steel plate, because the goods are often hard materials, and the steel plate can prevent the cargo from damaging the trailer.
WhatsApp Get A Quote
Tipper Trailer Details and Specifications
TIPPER TRAILER SPECIFICATIONS |
||
|---|---|---|
| Parameter | Overall Dimension | Length × Width × Height: 11573x2550x3700mm (Customizable) |
| King Pin Setting | 950mm From the Face of Front Bolster | |
| Axle Space | 6571+1310+1310mm | |
| Tare Weight (kg) | 13,500 | |
| Payload (kg) | 30-80 Ton | |

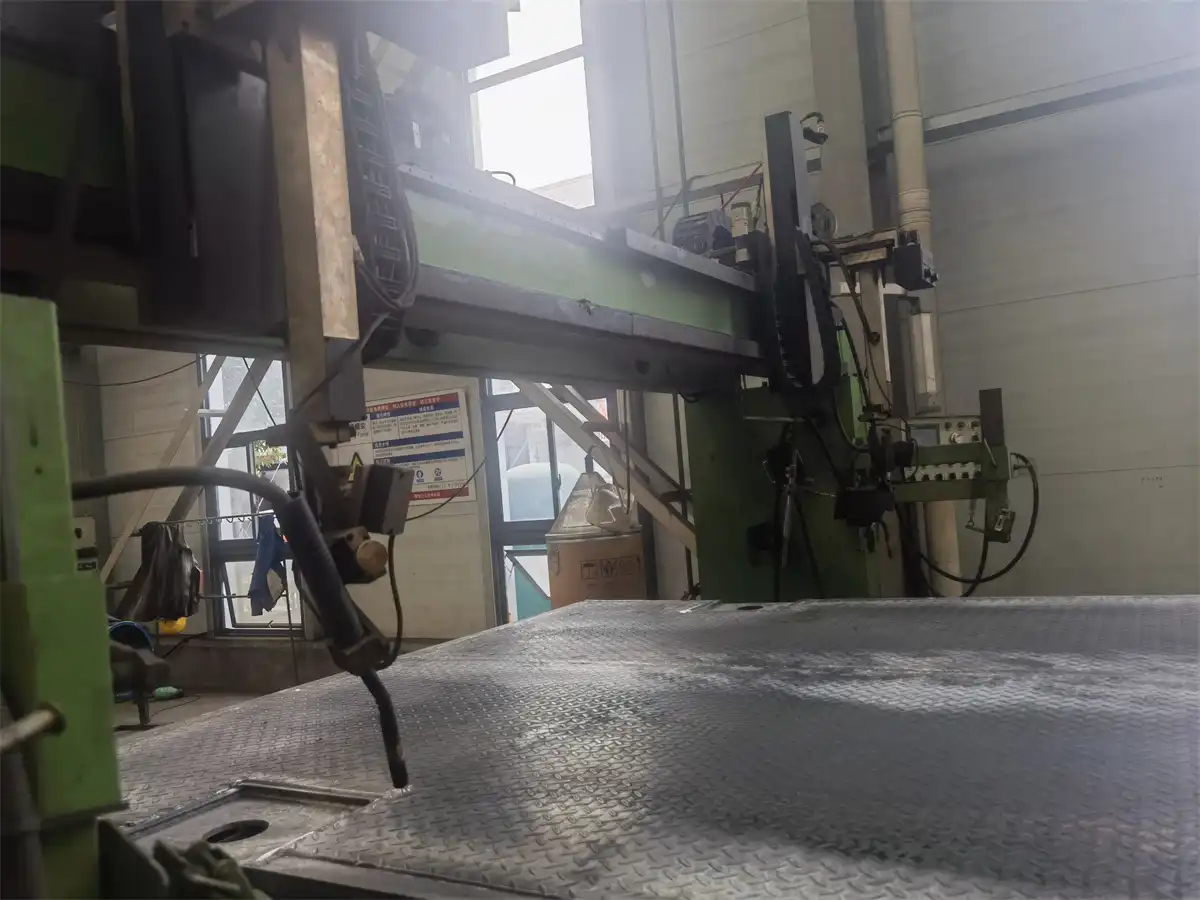

| Fabric | Main Beam | Submerged Arc Welding |
| Flange and Web (mm) | 16/10/16 | |
| Body | Inside Dimension | Length × Width × Height: 10500x2350x1800mm (Customizable) |
| Capacity | 22-45m³ | |
| Floor | 8mm | |
| Side Wall | 6mm | |

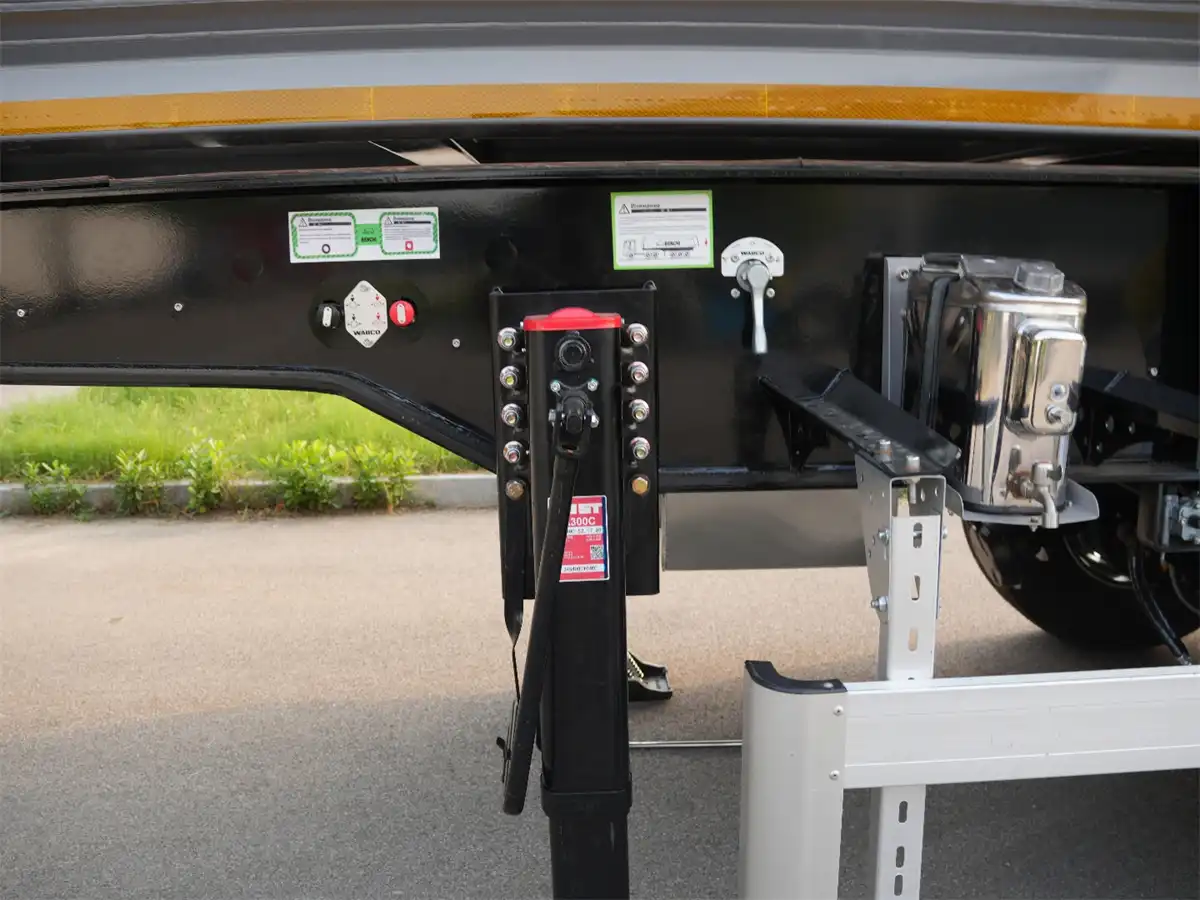

| OEM Parts | Landing Gear | 30T, Single Side Operated |
| Kingpin | JOST 3.5’’ | |
| Hydraulic System | Hyva or Binotto | |

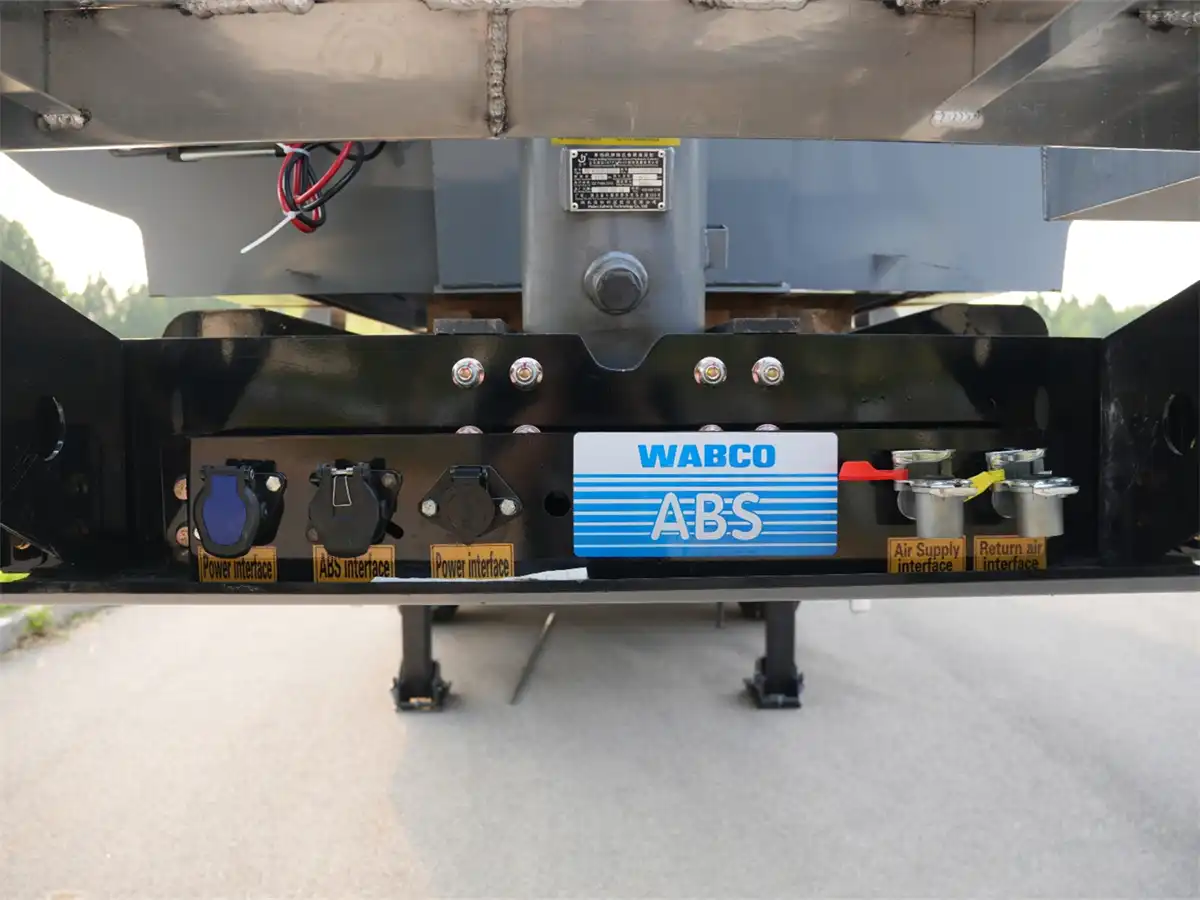

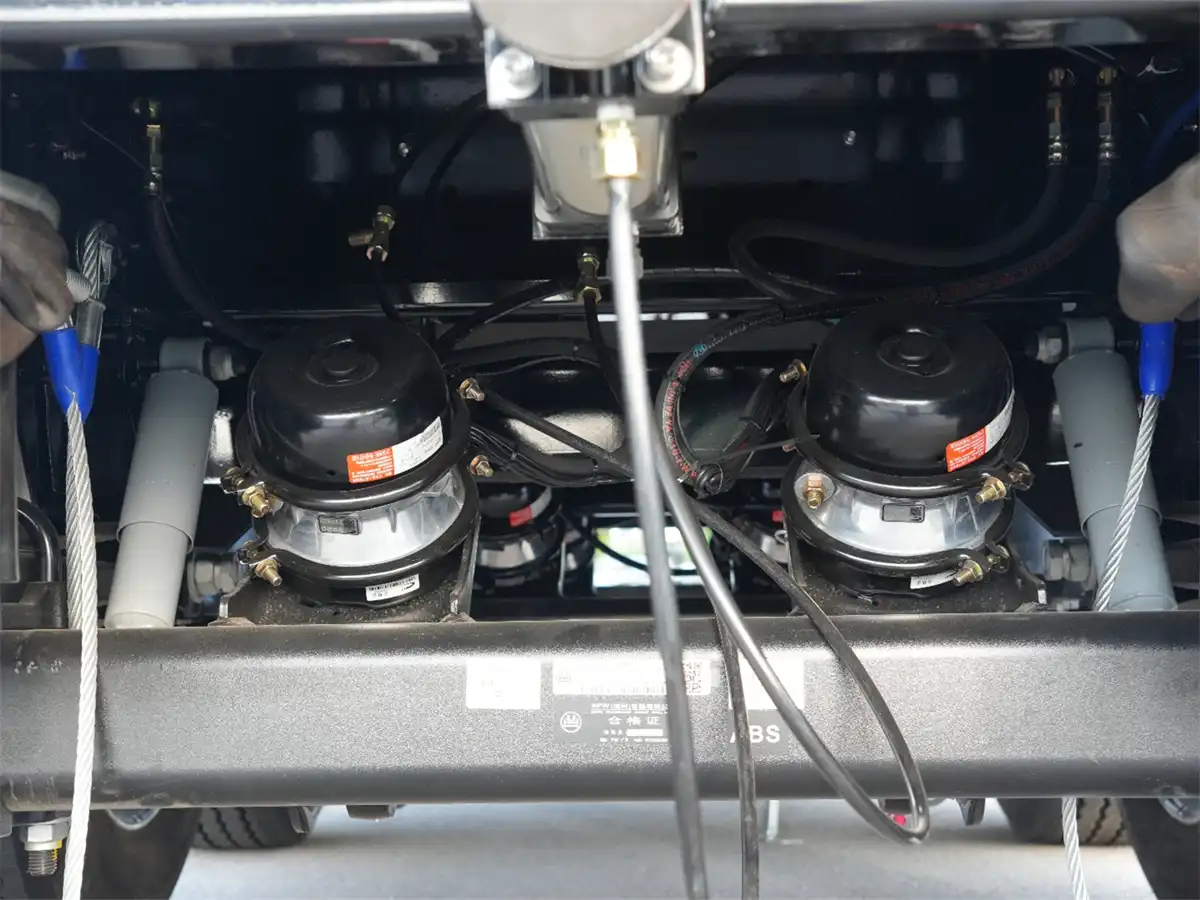

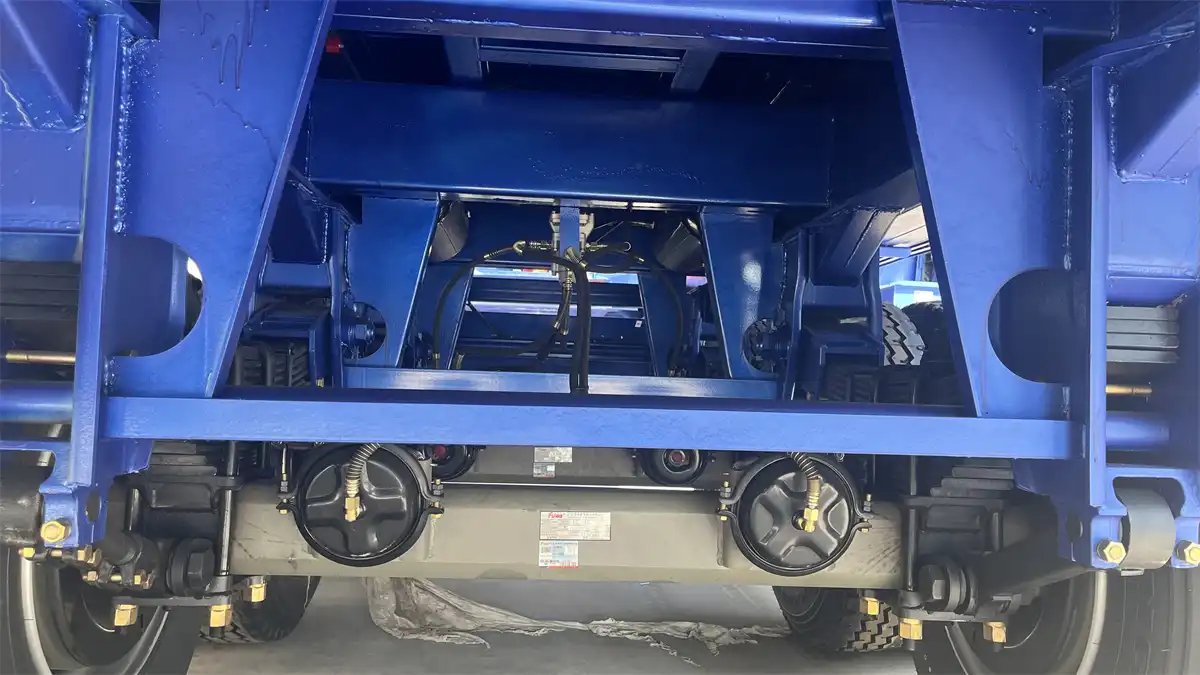

| Brake System | Dual Lines Air Brake System, T30/30 on All Axles, WABCO Brake Valve, Without ABS | |
| Elec System | 24V ISO1185 Standard Modular Harness | |

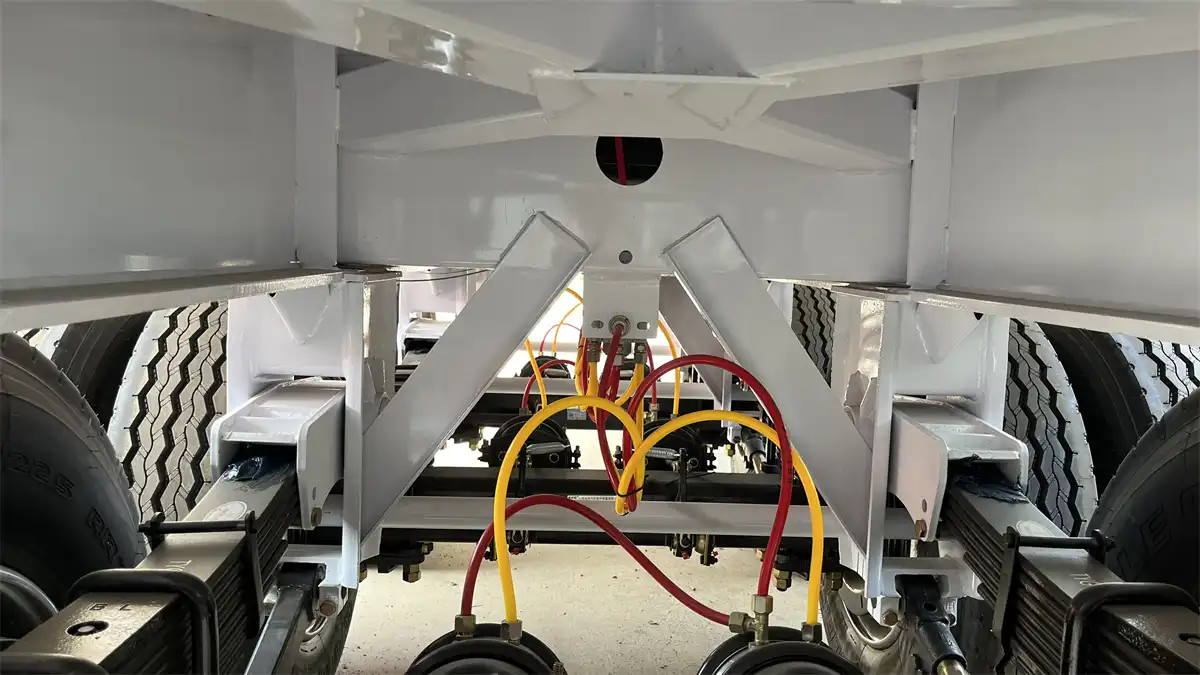

| Suspension | 3-Axle Reinforced Heavy Duty Mechanical Suspension | |
| Leaf-Spring | 12PCS 90*16 | |

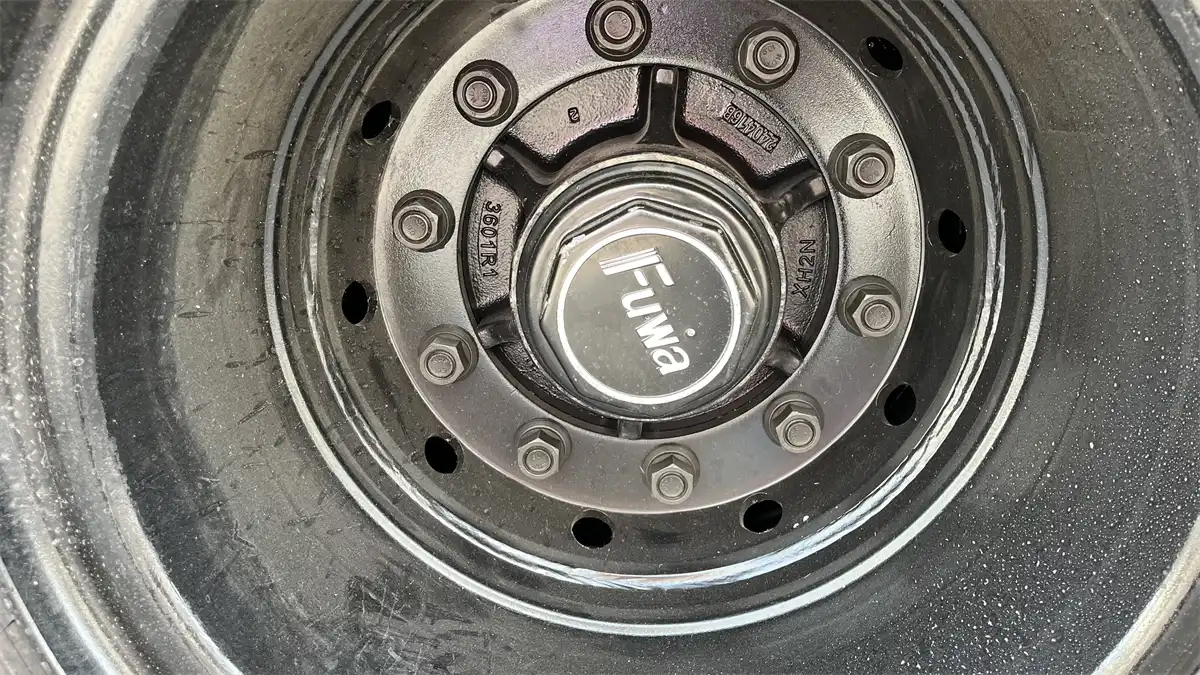

| Axle | FUWA 2/3/4/5/6 Axle 16T | |
| Tire | 12.00R20-18PR | |
| Rim | 8.5*20 | |
| Spare Tire Carrier | 2 Units Per Chassis | |
| Tool Box | 1 Unit Per Chassis | |
| Paint | Wear-Resistant Two-Component Paint, Color According to Customer’s Requirement | |
| Others | Standard Export Logo and Stickers | |
Why Choose a Tipper Trailer from Benchi Trailer?
Strong Strength
Benchi Heavy Industry boasts a robust team of over 500 dedicated employees, including 43 professional designers and 27 engineers.
Over the past 20 years, we have been ploughing deeper and deeper into the field of R&D and manufacturing of semi-trailers, and now we have become a leading brand of semi-trailers in China. Every year we take out 30 of our income to research and develop new products, and we have obtained more than 100 invention patents, which is the best proof of our strength.
Among them, tipper semi-trailers are our most advantageous products, and our rich experience enables us to meet any customised needs of our customers.
Tipper Trailer Patent Certificates
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
About Us
BENCHI IS THE BEST SEMI-TRAILER MANUFACTURER IN CHINA

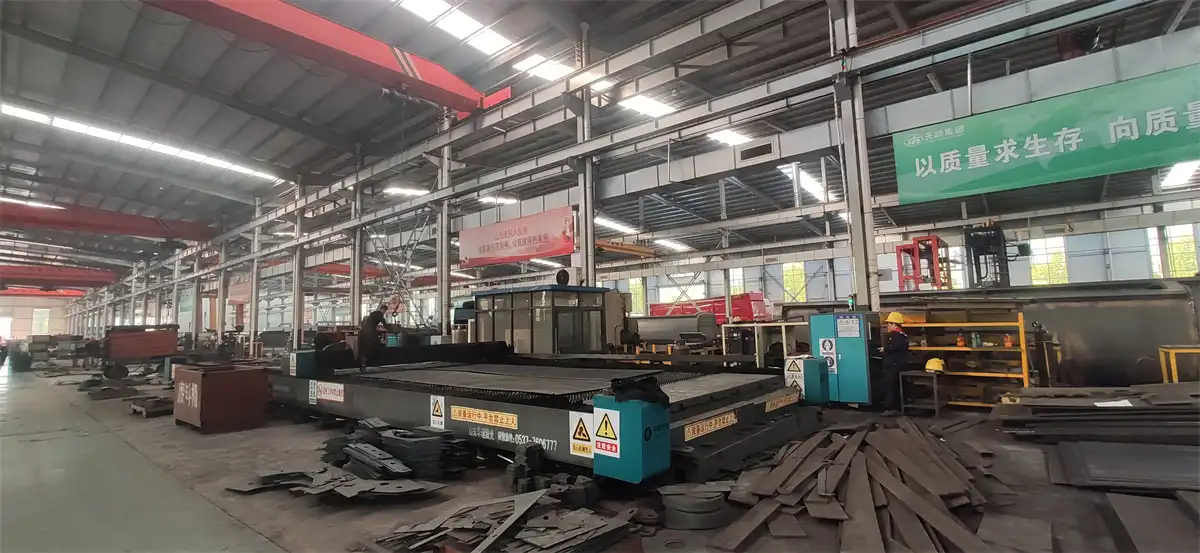

Shandong Benchi Heavy Industry Co., Ltd. since in 2013, located in Liangshan Industrial Park, Shandong Province. It covers an area of 54,000 square meters.
Benchi manufactures and sells semi-trailers, with an annual sales volume of over 1,000 units. The main products include car carrier trailers, lowbed trailers, SPMTs, and tipper, container, and box trailers.
Our Mission
Benchi always aims at maximizing product value, adheres to customer demand orientation, provides high-quality products, and wholeheartedly provides product solutions for global customers.
Get a Quote! WhatsApp
Our Service
We offer different types of tipper semi-trailers, including 2-axle, 3-axle, 4-axle, and tipper trailers with 30-80 tonne capacity and volume up to 45 cubic metres.
As a professional tipper trailer manufacturer, we can also customise the trailers exactly according to customers’ requirements.
Unlike dealers, we are an integrated company of industry and trade, and all orders do not need to be purchased from all over the world. We ship the products directly to you after production, no middleman to earn the difference price; directly with the factory to save the communication cost.
All trailers have a 3-year quality guarantee, and we will be responsible for all problems during the use of your trailer.
Get a Quote! WhatsApp
faq
Shandong Benchi Heavy Industry Co., Ltd., founded in 2006 and established in 2019, is an integrated industrial and trade enterprise. With a robust R&D system, a team of technical experts, over 50 patented technologies, and an annual production capacity of 5,000 vehicles, we ensure high-quality, reliable products, and comprehensive after-sales services.
Please provide details like your purpose, road condition, cargo type and weight, trailer dimensions, and quality requirements. The more information you provide, the more accurate the model and price estimation will be.
We are a manufacturer with over 20 years of experience, specializing in mechanical design and offering full services from design to after-sales, with a commitment to high-quality, economical trailers.
Tank Structural: 3 years
Chassis: 3 years
Painting: 3 years
Pipework: 1 year
Hydraulic Hoses: 6 months
Support Brackets: 1 year
Hose Tray: 1 year
Ladder: 1 year
Handrails and Brackets: 6 months
Absolutely. We need to know the type of goods, volume, and weight you’ll carry to provide you with an accurate trailer configuration.
