4 Axle U Shape Rear Dumper Trailer

The 4 Axle U-Shape Rear Dumper Trailer is a robust and highly efficient solution tailored for transporting bulk materials, featuring advanced specifications for enhanced performance in industries such as construction, mining, and agriculture.

45 Ft Curtain Side Trailer

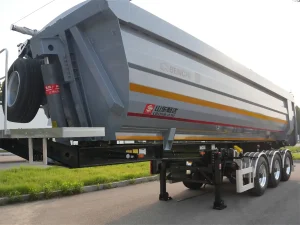

4 Axle U Shape Rear Dumper Trailer

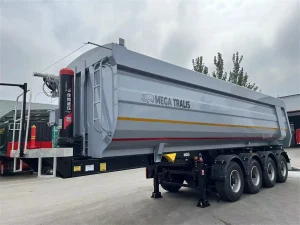

4 Axle U Shape Rear Dumper Trailer

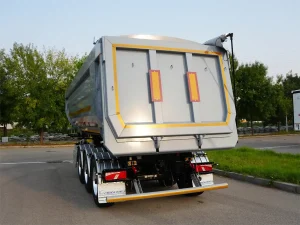

4 Axle U Shape Rear Dumper Trailer

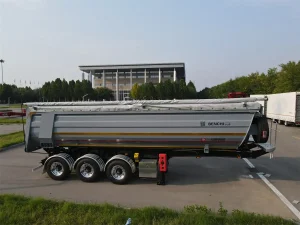

4 Axle U Shape Rear Dumper Trailer

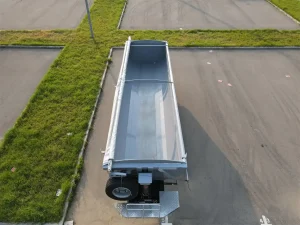

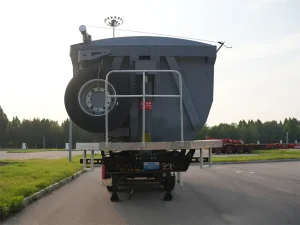

4 Axle U Shape Rear Dumper Trailer

This trailer is ideal for hauling materials like gravel, sand, coal, and other construction debris. Its U-shape design optimizes the unloading process by ensuring smooth flow during tipping, reducing downtime on work sites. This trailer is specifically designed for demanding environments that require frequent tipping operations.

The trailer’s dimensions (10600mm x 2550mm x 3580mm) provide a substantial effective volume of 35 cubic meters, making it capable of carrying high payloads without compromising stability. It is equipped with BPW axles and 3-axle air suspension, ensuring a smooth ride even when loaded to its maximum payload capacity of 55 tons. The curb weight of 11.2 tons and bottom and side plate thickness of 6mm ensure durability, enabling the trailer to withstand heavy-duty use.

The Jiaheng hydraulic cylinder model (200-6500) is a key feature that provides powerful lifting capabilities, ensuring efficient unloading of materials. Additionally, the trailer is equipped with a pneumatic reverse rear protection system for enhanced safety during operations, and full vehicle height adjustment to adapt to various terrain and loading requirements​.

• 4 Axle U Shape Rear Dumper Trailer
• Effective volume: 35 cubic meters
• Curb weight: 11.2 tons
• Maximum payload: 55 tons
• Dimensions (L x W x H): 10600mm x 2550mm x 3580mm
• Bottom plate thickness: 6mm
• Side plate thickness: 6mm
• Jiaheng hydraulic cylinder model: 200-6500
• WABCO anti-lock braking system (ABS)
• JOST landing legs
• BPW axles
• 3-axle air suspension
• Full vehicle height adjustment
• Front axle lift
• Electric spare tire carrier
• Pneumatic reverse rear protection
• Tire specification: 385/65R22.5 single tire
• Aluminum alloy wheels

1. High Payload Capacity: With a maximum payload of 55 tons, this trailer enhances operational efficiency, reducing the need for multiple trips.
2. Enhanced Braking and Safety Systems: The trailer is equipped with a WABCO anti-lock braking system (ABS), ensuring superior control and safety during transport. The inclusion of JOST landing legs provides stable support when stationary, and the electric spare tire carrier makes tire changes easier and more efficient.
3. Front Axle Lift: This feature improves fuel efficiency when the trailer is unloaded, as the front axle can be lifted to reduce friction and tire wear​.Durability and Strength: The frame construction utilizes high-quality materials, including a 6mm thick bottom and side plates, ensuring longevity even with constant use in rough conditions​.

With a focus on durability, efficiency, and safety, this trailer combines a high payload capacity with advanced features like air suspension, ABS, and pneumatic protection systems. It provides a reliable solution for heavy-duty transport needs, ensuring smooth and efficient operations in tough working environments. The trailer’s use of aluminum alloy wheels and single tire specification (385/65R22.5) further contributes to reduced weight, improved fuel efficiency, and lower maintenance costs​.
