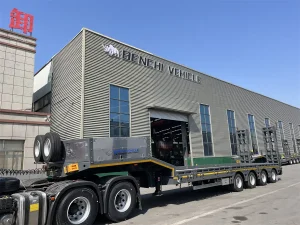

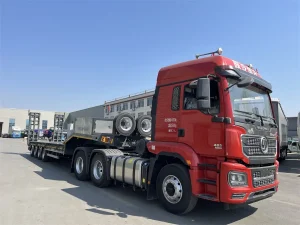

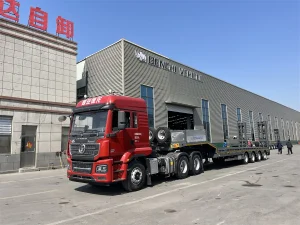

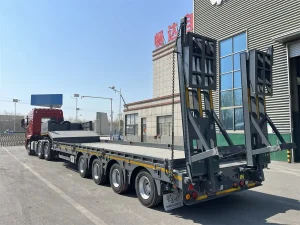

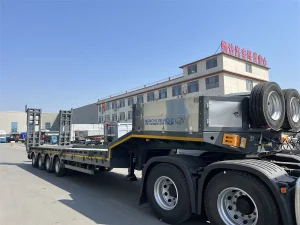

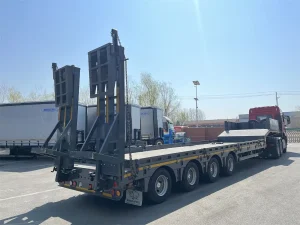

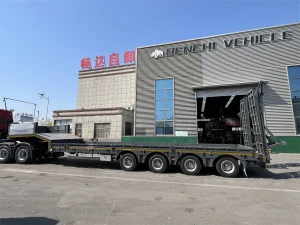

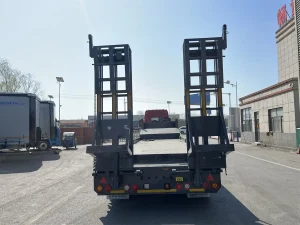

4 Axle Low Loader Trailer
$28,000.00
Different Parameters, Different Price. Price Reference Only.
Axle: 4 Axle
Vehicle Weight: 15 Ton
Load Capacity: 60 Ton
Delivery: 10-25 Days
Dimensions: 15500x2550x3330mm
Transportation Medium: Engineering Equipment
4 Axle Low Loader Trailer Video
4 Axle Low Loader Trailer Specification
- Overall Dimensions (L*W*H): 15500x2550x3330mm
- Internal Dimensions (L*W*H): 15500x2500x3330mm
- Vehicle Weight: 15T
- Maximum Load Capacity: 60T
- Transport Medium: Construction Equipment
- Sidewall: 250mm movable board on each side
- Front Plate: 25mm high
- Climbing Ladder: A pair of double-spring climbing ladders
- Widener: Square tube
- Through Beam Specification: Factory Fitted
- Side Beam Specification: 250# I-beam
- Floor Thickness: 3mm
- Bracing: Channel Steel
- Cross Brace: Standard
- Beam Height: 350mm
- Upper Flange Thickness: 18mm
- Lower Flange Thickness: 20mm
- Beam Web: 12mm+12mm
- Lower Flange Reinforcement Plate: Standard
- Axle: 4 Axle
- Tire: 235/70R17.5 (16 Pcs)
- Wheel Rim: 6.75×17.5 Steel Rim (16 Pcs)
- Landing Gear: 28T Single Action (1 Pair)
