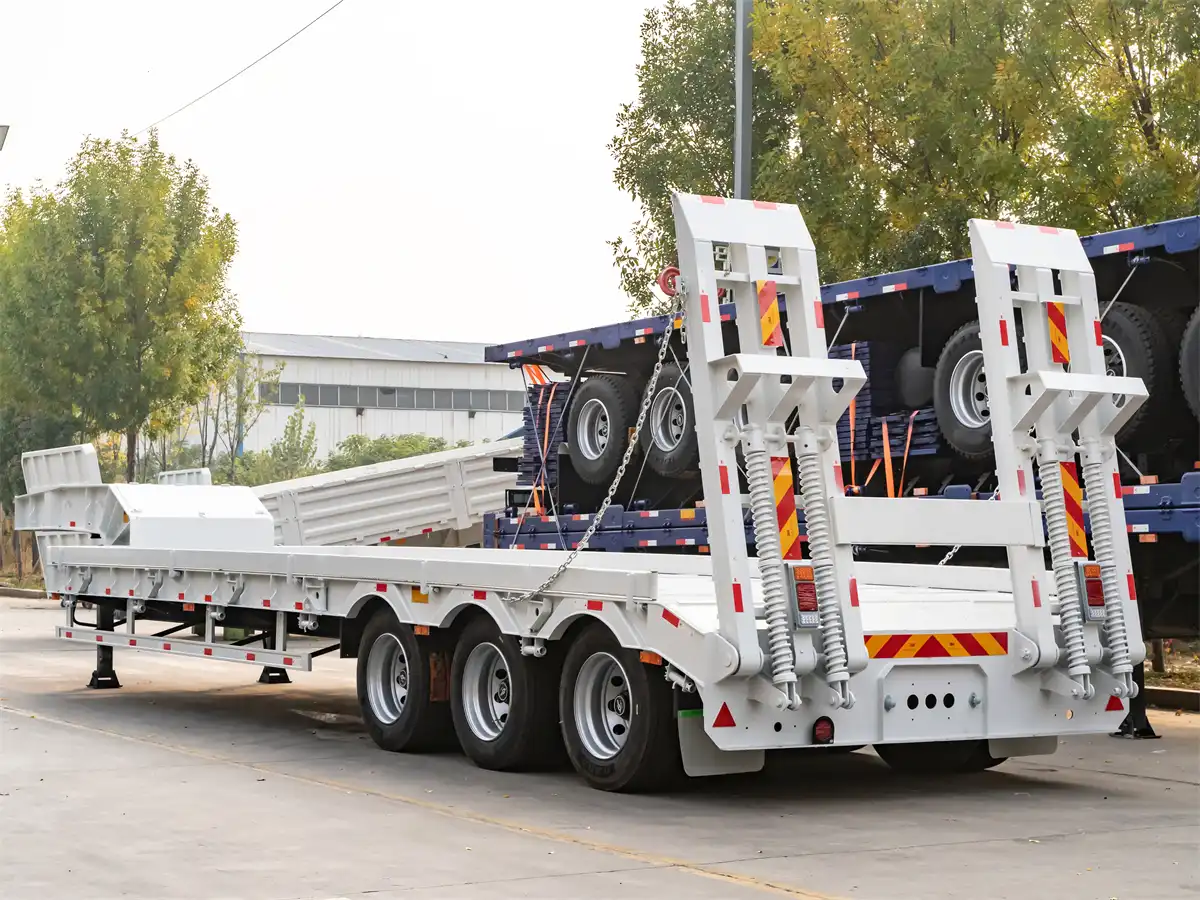

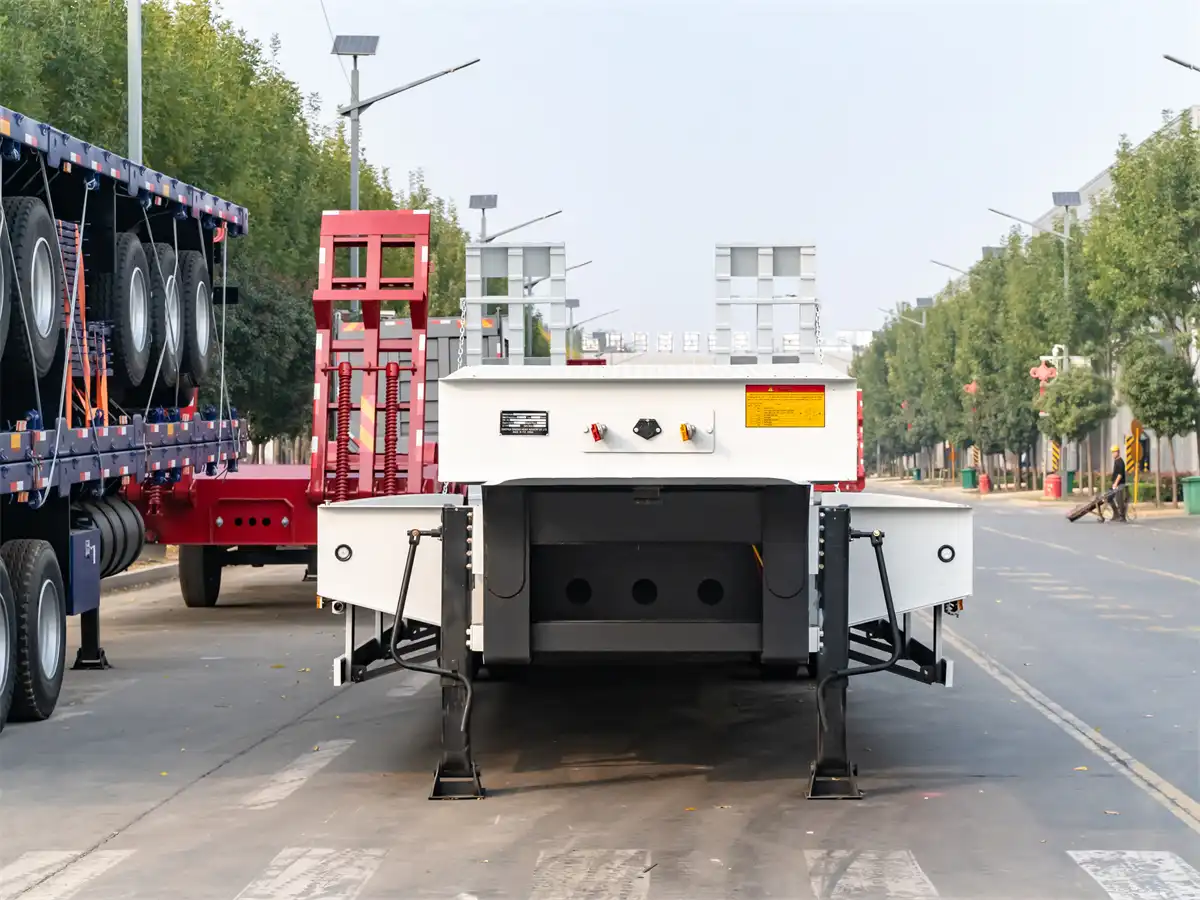

3 axle low bed trailer to help you transport construction machinery more efficiently. Made with high strength steel, 80 tons standard load capacity, overloading is allowed by more than 30% under special circumstances. We pay attention to details, so the semi-trailers we make are more durable. Our dedication to quality eliminates the need for frequent maintenance of low bed trailers, helping you to reduce costs and increase efficiency.
3 Axle Low Bed Trailer Application
The lowbed semi trailer has a lower chassis and a more robust structure, which makes it more suitable for transporting ultra-high and ultra-heavy loads, such as excavators, bulldozers, large machine tools, special vehicles, and large prefabricated steel structures.
If you want to know more details about 3 axle low bed trailer, or are still not sure what type and configuration of semi-trailer you need to transport your goods, please feel free to contact us. Our staff will reply you within 4 hours.
Inquire3 Axle Low Bed Trailer Specifications
| 3 Axle Lowbed Semi Trailer Specifications | |
|---|---|
| Type | 3 Axle Low Bed Trailer |
| Loading Capacity | 30-80 Tons |
| Axle | 3 Pieces, 13T FUWA/BPW Axle |
| Tyre | 12 Pieces, 10.00R20 |
| Dimensions (LxWxH) | 14000x2550x1750mm |
| Tare Weight | 12 Tons |
| Axle Spacing | 1310mm |
| Rims | 8.5-20, 9.0-20 |
| Suspension System | Leaf Spring Suspension / Air Suspension |
| Brake System | Dual Line Pneumatic Brake System With WABCO Emergency Relay Valve |
| Main Beam | Height 500mm T700 High Strength Steel |
| Chassis | Upper 20mm, Lower 20mm. Mid Web 12mm |
| Rear Loading Ramps | 2 Nos, 720mm Width, Spring Loaded & Manually Operated With Safety Chain |
| Kingpin | 2′ Or 3.5′ Interchangeable, JOST Brand |
| Landing Gear | 28 Tons, Two Speed Manual Operation |
| Electrical System | 1. Voltage: 24v 2. Receptacle: 7 Ways (7 Wire Harness) German Standard |
| Lights And Reflectors | Rear Light, Rear Reflector, Turn Indicative Light, Side Reflector, Fog Lamp, Number Plate Light |
| Painting | Two-component paint, wear-resistant and scratch-resistant, cold and high temperature resistant; Any Color Will Be Available |
| Tool Box | One Tool Box With A Set Of Standard Trailer Tools |
| Spare Tyre Carrier | One Piece Or Two Pieces |
Product Advantages
- The loading platform uses 3mm non-slip patterned plate;
- The beam uses T700 cold-resistant and high-temperature-resistant high-strength steel to reduce deadweight;
- Two-component paint, wear-resistant and scratch-resistant, high temperature resistant, long service life;
- The whole vehicle is made of solid materials, suitable for complex road conditions, not easy to fail;
- Genuine accessories, fake one compensates ten, no need to worry about quality problems;
- Good reputation for 20 years, well-known at home and abroad.
3 Axle Low Bed Trailer Detail
FUWA Axle
Gooseneck Reinforcement
