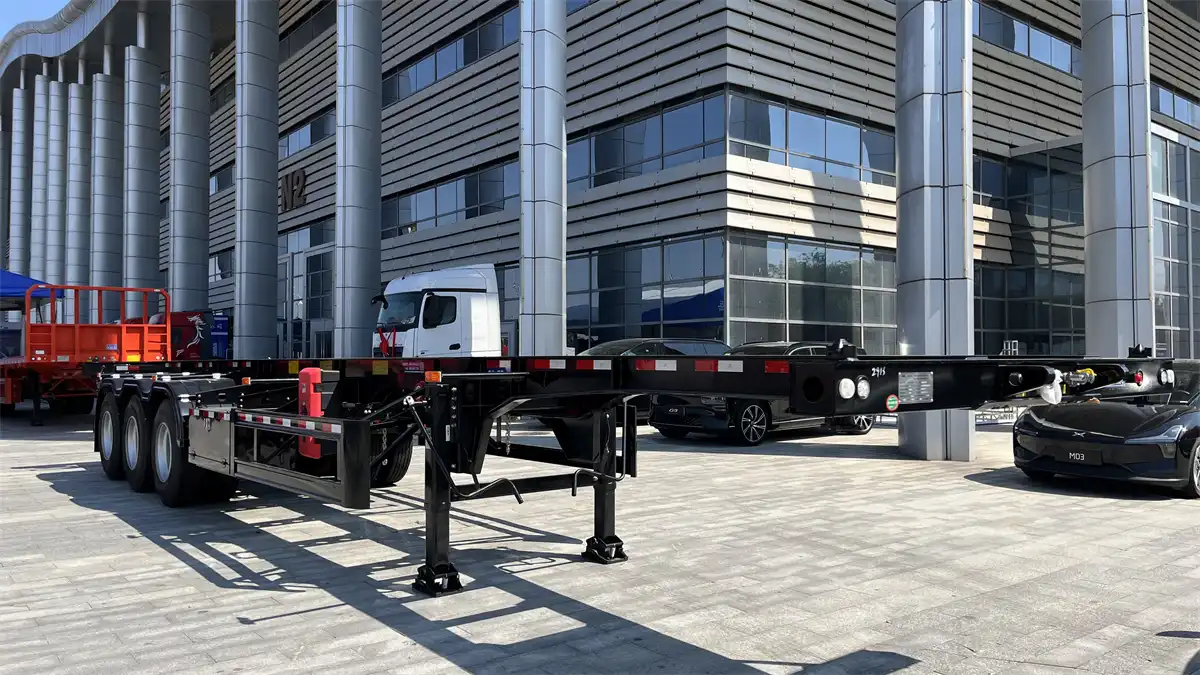

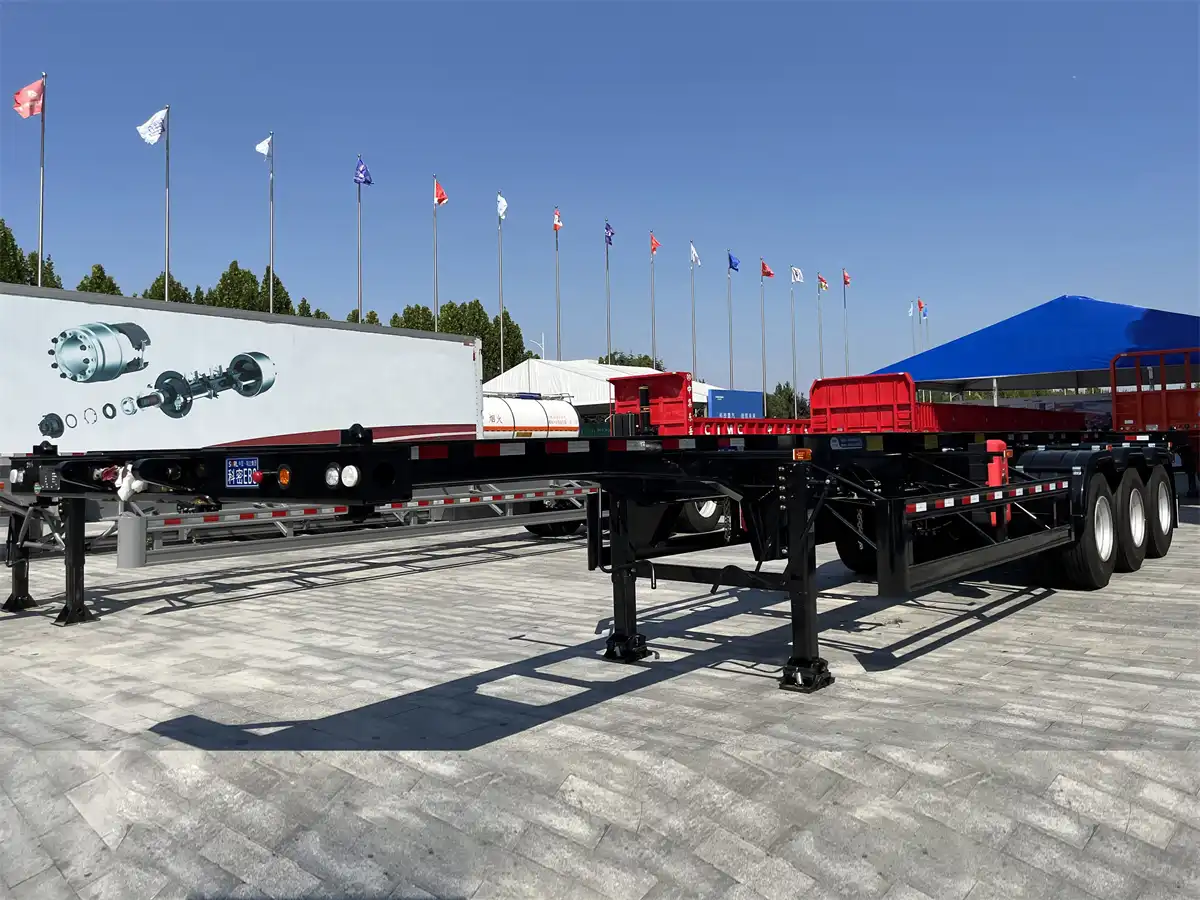

3 Axle Skeleton Semi Trailer
$18,500.00
Different Parameters, Different Price. Price Reference Only.
Axle: 3 Axle FUWA/BPW
Size: 40 Feet
Dimension: 12500x2500x1550mm
Delivery: 7-20 Days
The 3 Axle Skeleton Semi Trailer is a versatile and efficient trailer specifically designed for transporting shipping containers of various sizes, including 20ft, 40ft, and sometimes 45ft containers. It plays a vital role in intermodal transportation, seamlessly facilitating the movement of goods across ships, ports, roads, and railways without the need to unload the container, making it a staple in global logistics.
3 Axle Skeleton Semi Trailer Specifications
| 3 Axle Skeleton Semi Trailer Specification | |
|---|---|
| Dimension | 12.5m × 2.5m × 1.55m (Outside) |
| Payload | 50 Tons |
| Twistlock | 12 Units |
| Main Beam | Heavy Duty and Extra Durability Designed I Beam Opting for High Tensile Steel T700 |
| Frame Beam | Top Flange 14mm Width 140mm Middle Flange 8mm Bottom Flange 16mm Width 140mm Main Beam Height 500mm |
| Frame Floor | The Thickness is 3mm Pattern |
| Axle | 3 Axles |
| Landing Gear | 28T Lifting Capacity with Two Speed |
| King Pin | 2.00 or 3.5 Inch Bolt-In King Pin |
| Suspension | Mechanical Suspension Reinforced Type |
| Leaf Spring | 90mm(W) × 16mm(T) × 10 Layer |
| Pneumatic Braking System | Dual Line Pneumatic Brake System T30/30+T30 Air Chamber 40L Air Tanks Emergency Relay Valve |
| Tire | 12R22.5 × 12pcs |
| Accessories | One Standard Tool Box |
| Spare Tire Rack | One |
| Painting | Two-Component Paint |
| Shipping Terms | By Bulk Cargo/RORO |
3 Axle Skeleton Semi Trailer Application Scenarios
This trailer is frequently used in maritime and inland freight, particularly in ports, transit stations, and highways. Its ability to carry up to 2x20ft or 1x40ft containers makes it highly suitable for heavy-duty logistics operations. Skeleton trailers are favored in industries such as shipping, manufacturing, and containerized cargo transport, providing reliable support in environments requiring frequent loading and unloading.

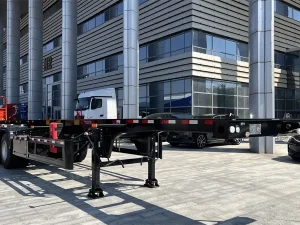

3 Axle Skeleton Semi Trailer

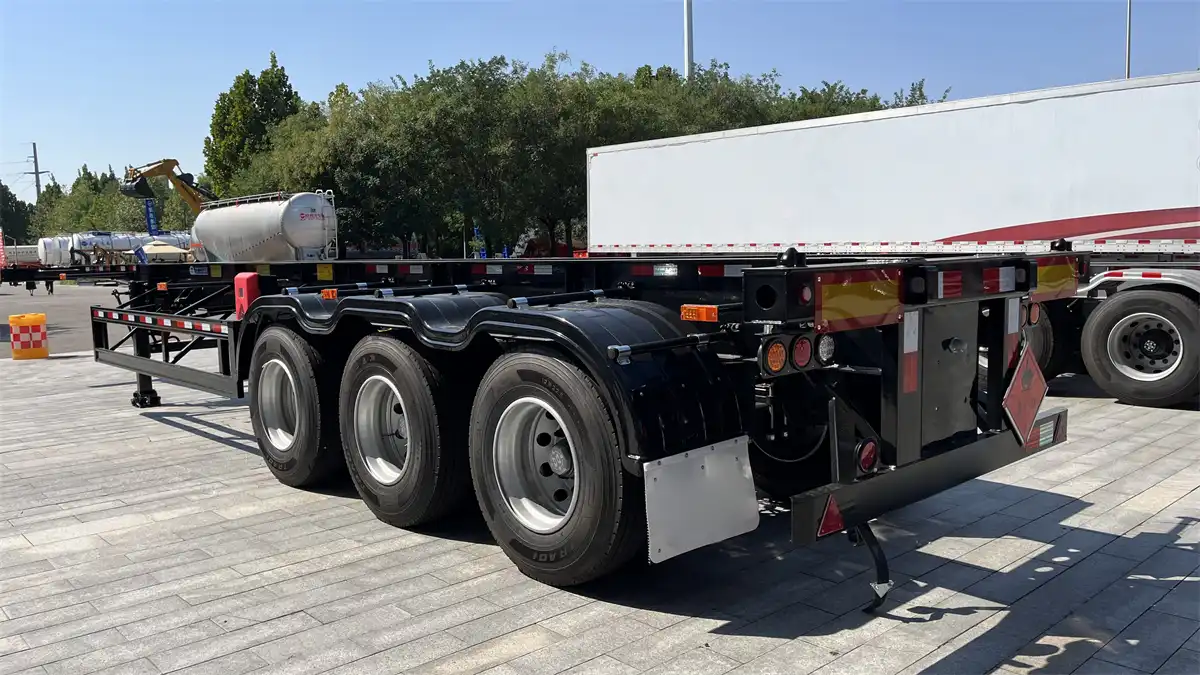

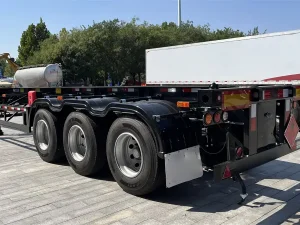

3 Axle Skeleton Semi Trailer

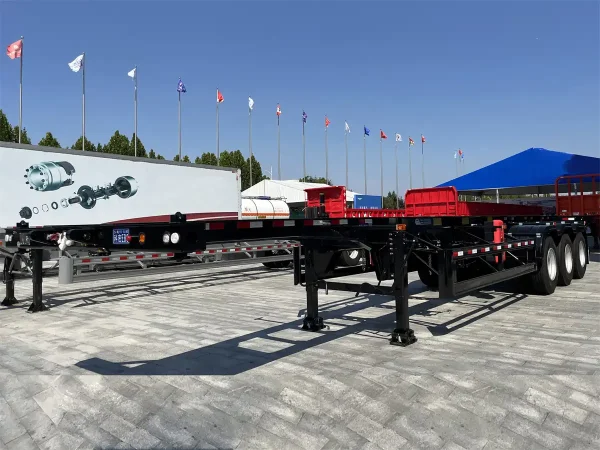

3 Axle Skeleton Semi Trailer
Tri Axle Skeletal Trailer Structure and Design
The skeleton trailer features a sturdy yet lightweight frame constructed from high-tensile steel, often using T700 alloy for added strength and durability. The frame includes twist locks (typically 4 to 12 sets) that securely hold containers in place during transport. The 3-axle configuration offers robust support for payloads between 40 and 70 tons, depending on the specific model. Many trailers in this category also come equipped with mechanical or airbag suspensions to ensure smoother rides, even under heavy loads.
Key structural features include:
- Axles: 3 axles, often from premium brands like FUWA or BPW, capable of bearing significant loads.
- Braking System: Typically features WABCO braking systems, known for their efficiency and safety.
- Twist Locks: The container locks have a secondary lock mechanism for added security.
- Landing Gear: JOST-branded manual landing gear enhances stability when loading and unloading.
Advantages
The main advantages of a 3 Axle Skeleton Semi Trailer include its lightweight yet robust frame, which reduces dead weight while enhancing fuel efficiency. The use of high-quality materials ensures long-term durability, preventing deformation even under tough operational conditions. In addition, the modular nature of the twist lock system allows for versatile container configurations, making it adaptable to various logistics needs. The trailer’s ease of customization is another key selling point, with manufacturers offering a range of options for axle numbers, suspension types, and container lock configurations.
Why Choose This Semi Trailer?
Choosing a 3 Axle Skeleton Semi Trailer offers several benefits:
- High Performance: Premium components like FUWA/BPW axles and WABCO brakes ensure reliability under heavy loads and tough terrains.
- Customization: The trailer can be tailored to specific transport needs, whether you require different axle counts, twist lock setups, or even custom branding.
- Proven Durability: The robust construction and use of high-grade steel provide an extended operational lifespan, making it a cost-effective investment for logistics businesses.
- International Certification: Many trailers come with ISO, CE, and CCC certifications, ensuring compliance with global safety and quality standards.
This combination of versatility, strength, and customization options makes the 3 Axle Skeleton Semi Trailer an excellent choice for businesses looking to optimize container transport operations.
