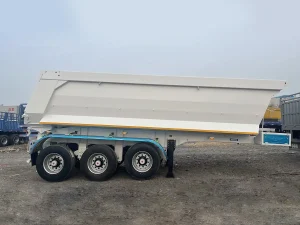

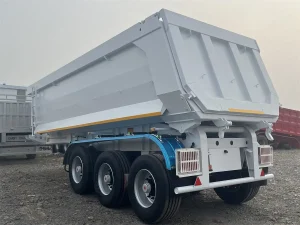

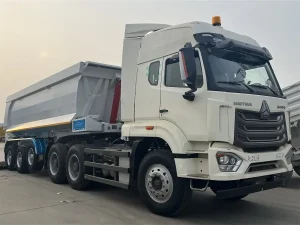

3 Axle Tipper Trailer
$22,000.00
Different Parameters, Different Price. Price Reference Only.
Axle: 3 Axle FUWA/BPW
Overall Dimension: 11573x2550x3700mm
Use: Transportation of sand, stone, ore, coal, etc.
Delivery: 7-20 Days
BENCHI 3 axle tipper trailer for sale. We use famous brand spare parts, such as Hyva hydraulic cylinders, Jost legs, BPW axles, Triangular tires and so on. Not only the service life is longer, but also it is easier to find the same type of spare parts locally.
3 Axle Tipper Trailer Details
Hyva Hydraulic Cylinders
The stability performance of Hyva hydraulic cylinders is higher than that of other brands. The lifting force is stronger.
Thickened Suspension
We’ve increased the thickness of the suspension to give it more load-carrying capacity. Smooth ride even when overloaded.
Subframe
Uses T700 high strength steel, which is more resistant to pressure compared to ordinary Q235 steel.
Optional Air Suspension
Air suspension reduces the bumpy ride of the 3 axle tipper trailer on roads with poor road conditions.
Other Details
3 Axle Tipper Trailer Details
3 Axle Tipper Trailer Details
3 Axle Tipper Trailer Details
3 Axle Tipper Trailer Details
Product Advantages
- U-shaped cargo box design, which is not only lighter but also ensures clean unloading.
- Optional stabilizing brackets are available for increased stability during transport.

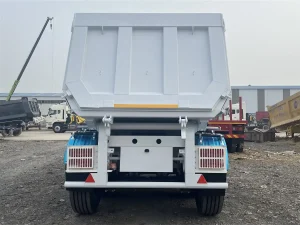

- Rear tail lights are equipped with protective covers to prevent damage from stones during unloading.
- Uses branded original parts, including Jost kingpins and landing gears, as well as Hyva hydraulic cylinders.
- Thickened suspension, better suited for transporting goods in poor road conditions.
Tri Axle Tipper Trailer Specifications
| 3 Axle Tipper Trailer Specifications | ||
|---|---|---|
| Parameter | Overall Dimension | Length × Width × Height: 11573x2550x3700mm |
| King Pin Setting | 950mm From the Face of Front Bolster | |
| Axle Space | 6571+1310+1310mm | |
| Tare Weight (kg) | 13,500 | |
| Payload (kg) | ≤70,000 kg | |
| Fabric | Main Beam | Submerged Arc Welding |
| Flange and Web (mm) | 16/10/16 | |
| Body | Inside Dimension | Length × Width × Height: 10500x2350x1800mm |
| Capacity | 22-45m³ | |
| Floor | 8mm | |
| Side Wall | 6mm | |
| OEM Parts | Landing Gear | 30T, Single Side Operated |
| Kingpin | JOST 3.5’’ | |
| Hydraulic System | Hyva or Binotto | |
| Brake System | Dual Lines Air Brake System, T30/30 on All Axles, WABCO Brake Valve, Without ABS | |
| Elec System | 24V ISO1185 Standard Modular Harness | |
| Suspension | 3-Axle Reinforced Heavy Duty Mechanical Suspension | |
| Leaf-Spring | 12PCS 90*16 | |
| Axle | 3*16T | |
| Tire | 13*12.00R20-18PR | |
| Rim | 13×8.5*20 | |
| Spare Tire Carrier | 2 Units Per Chassis | |
| Tool Box | 1 Unit Per Chassis | |
| Paint | Wear-Resistant Two-Component Paint, Color According to Customer’s Requirement | |
| Others | Standard Export Logo and Stickers | |
Why Choose Us?
- Tri axle tipper trailer is our most advantageous product with an annual export volume of more than 200 units.
- More than 10 dump semi trailer patents, 20 years manufacturing experience, 60% customer repurchase rate!
- The factory has advanced production equipment, standardized production workshop and professional staff.
- We provide perfect pre-sale and after-sale service, as well as professional technical support.
- As a semi trailer factory, we can offer you lower price and don’t worry about the quality.
Learn more about our story.
