End Dump Semi Trailer
$24,800.00
Different Parameters, Different Price. Price Reference Only.
Axle: 3 Axle FUWA
Hydraulic Cylinder: Hyva
Box Dimension: 9500x2550x1800mm
Use: Transportation of sand, stone, ore, coal, etc.
Delivery: 7-20 Days
BENCHI End Dump Semi Trailer is suitable for construction, agriculture and many other areas.
This end tipper semi trailer is a U-shaped cargo box design. This shape of the End Dump Semi Trailer leaves less residue when unloading.
Our concept is to build the strongest and durable products for our customers. End dump semi trailer cargo box is made of wear-resistant steel plate, and the beam is made of T700 high strength steel. The accessories were chosen from the globally recognized Fuwa axles and Hyva hydraulic cylinders.
End Dump Semi Trailer Details
Fuwa Axle
30 Ton Single Action Landing Gear
Thickened Suspension
Structural Reinforcement
Other Details

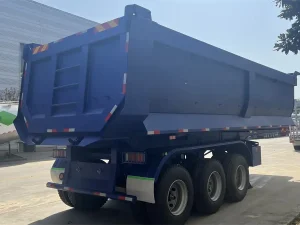

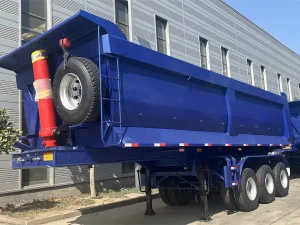

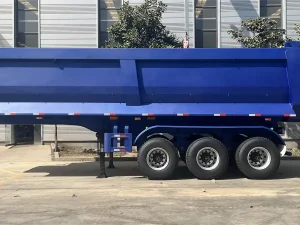

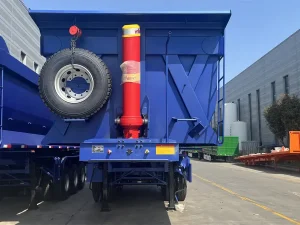

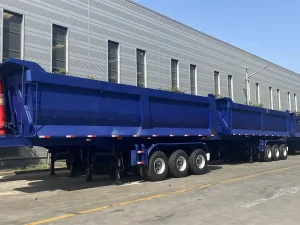

End Dump Semi Trailer
End Dump Semi Trailer
End Dump Semi Trailer
When Should You Choose a Rear Dump Semi Trailer?
- When it comes to transporting large or difficult to handle materials.
Rear dump semi trailers are ideal when you need to transport construction waste and larger stones. Our 3 axle tipper trailers are capable of handling up to 60 tons. - When you need to unload large quantities of material quickly and continuously.
Tipper semi trailer has excellent unloading speed, reducing the time of the vehicle at the unloading point and improving the working efficiency. 45° tilt angle can keep the stability while unloading the goods quickly.
Tri Axle Tipper Trailer Specifications
| Eud Dump Trailer Specifications | ||
|---|---|---|
| Parameter | Box Dimension | 9500x2550x1800mm |
| Axle Space | 6571+1310+1310mm | |
| Tare Weight (kg) | 13,500 | |
| Payload (kg) | ≤60,000 kg | |
| Fabric | Main Beam | Submerged Arc Welding |
| Flange and Web (mm) | 16/10/16 | |
| Body | Inside Dimension | 9500x2350x1780mm |
| Capacity | 22-40m³ | |
| Floor | 8mm | |
| Side Wall | 6mm | |
| OEM Parts | Landing Gear | 30T, Single Side Operated |
| Kingpin | JOST 3.5’’ | |
| Hydraulic System | Hyva | |
| Brake System | Dual Lines Air Brake System, T30/30 on All Axles, WABCO Brake Valve, Without ABS | |
| Elec System | 24V ISO1185 Standard Modular Harness | |
| Suspension | 3-Axle Reinforced Heavy Duty Mechanical Suspension | |
| Leaf-Spring | 12PCS 90*16 | |
| Axle | 3*16T Fuwa | |
| Tire | 13*12.00R20-18PR | |
| Rim | 13×8.5*20 | |
| Spare Tire Carrier | 2 Units Per Chassis | |
| Tool Box | 1 Unit Per Chassis | |
| Paint | Wear-Resistant Two-Component Paint, Color According to Customer’s Requirement | |
| Others | Standard Export Logo and Stickers | |
Why Choose Us?
- Tri axle tipper trailer is our most advantageous product with an annual export volume of more than 200 units.
- More than 10 dump semi trailer patents, 20 years manufacturing experience, 60% customer repurchase rate!
- The factory has advanced production equipment, standardized production workshop and professional staff.
- We provide perfect pre-sale and after-sale service, as well as professional technical support.
- As a semi trailer factory, we can offer you lower price and don’t worry about the quality.
Learn more about our story.
