CHINA LOWBED TRAILER MANUFACTURER
20-80 Ton, 2/3/4/5 Axle
We will provide you with the best quality lowbed trailer.
Get a QuoteLOWBED trailer for sale
Benchi Heavy Industry is a manufacturer of lowbed semi trailers located in China. We have been selling semi-trailers to African countries for more than 20 years with a total export volume of 18,000 semi-trailers. Our products are spread over more than 20 countries such as South Africa, Ghana, Zimbabwe, Zambia, Nigeria, Uganda, Namibia and so on.
We can supply low bed semi trailers from 20-80 tonnes, designed as 2-axle/3-axle/4-axle depending on the situation and your needs. We can also customise your exclusive lowbed trailer with a carrying capacity of up to 120 tonnes.
Our LOWBED Trailer Products
4 Axle Low Loader Trailer
150 Ton Removable Gooseneck Trailer
100 Ton Folding Gooseneck Trailer
3 Axle Low Bed Trailer
4 Axle Lowboy Trailer for Sale

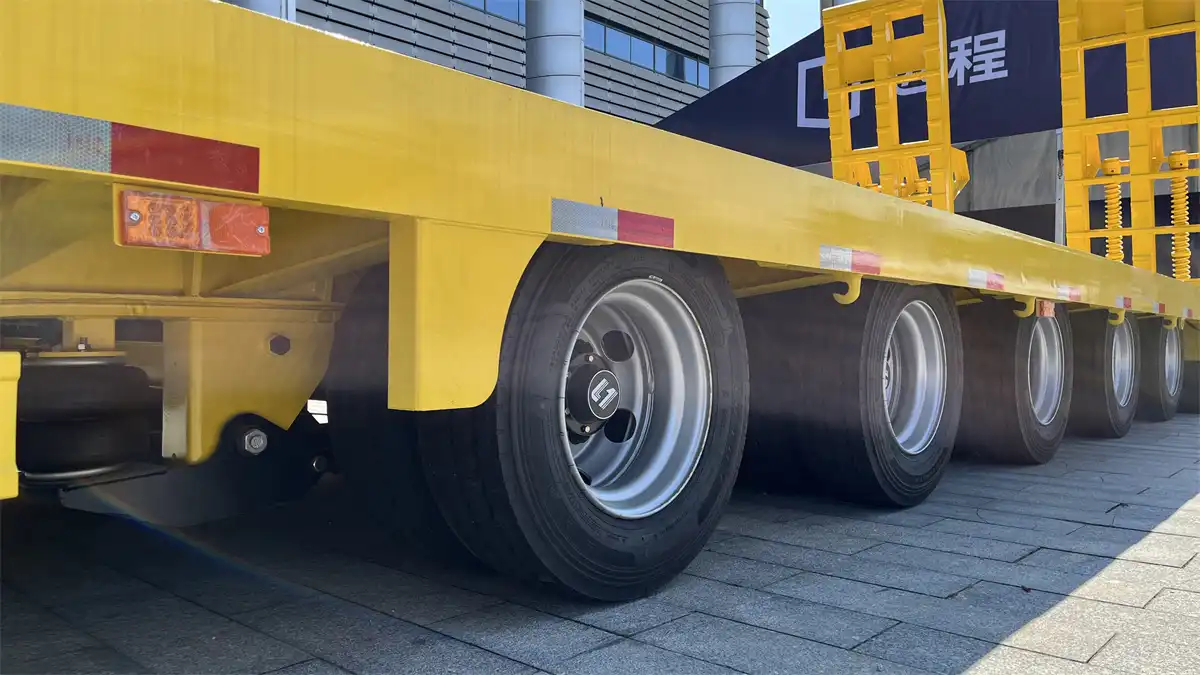

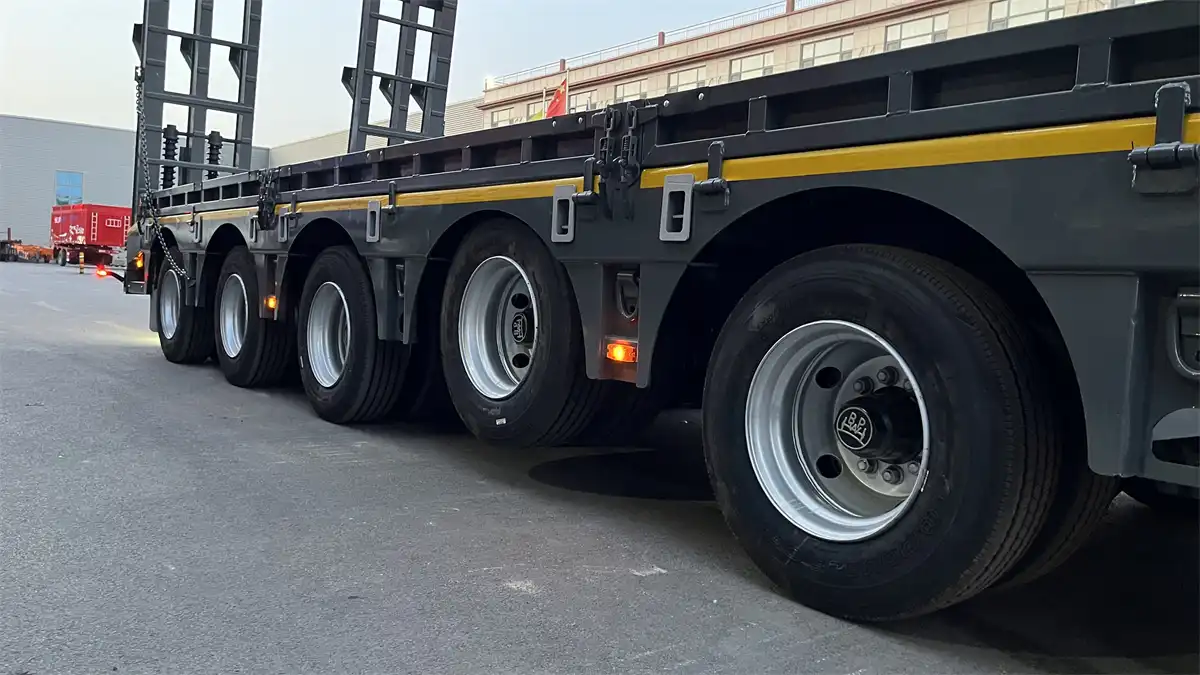

5 Axles 130 Tons Low Bed Trailer
LOWBED Trailer Specifications and Details
| Lowbed Semi Trailer Specifications | |
|---|---|
| Type | Low Bed Trailer |
| Loading Capacity | 30-80 Tons |
| Axle | 2-8 Pieces, 13T FUWA/BPW Axle |
| Tyre | 8-32 Pieces, 10.00R20 |
| Dimensions (LxWxH) | 14000x2550x1750mm or customizable |
| Tare Weight | 12 Tons |
| Axle Spacing | 1310mm |
| Rims | 8.5-20, 9.0-20 |

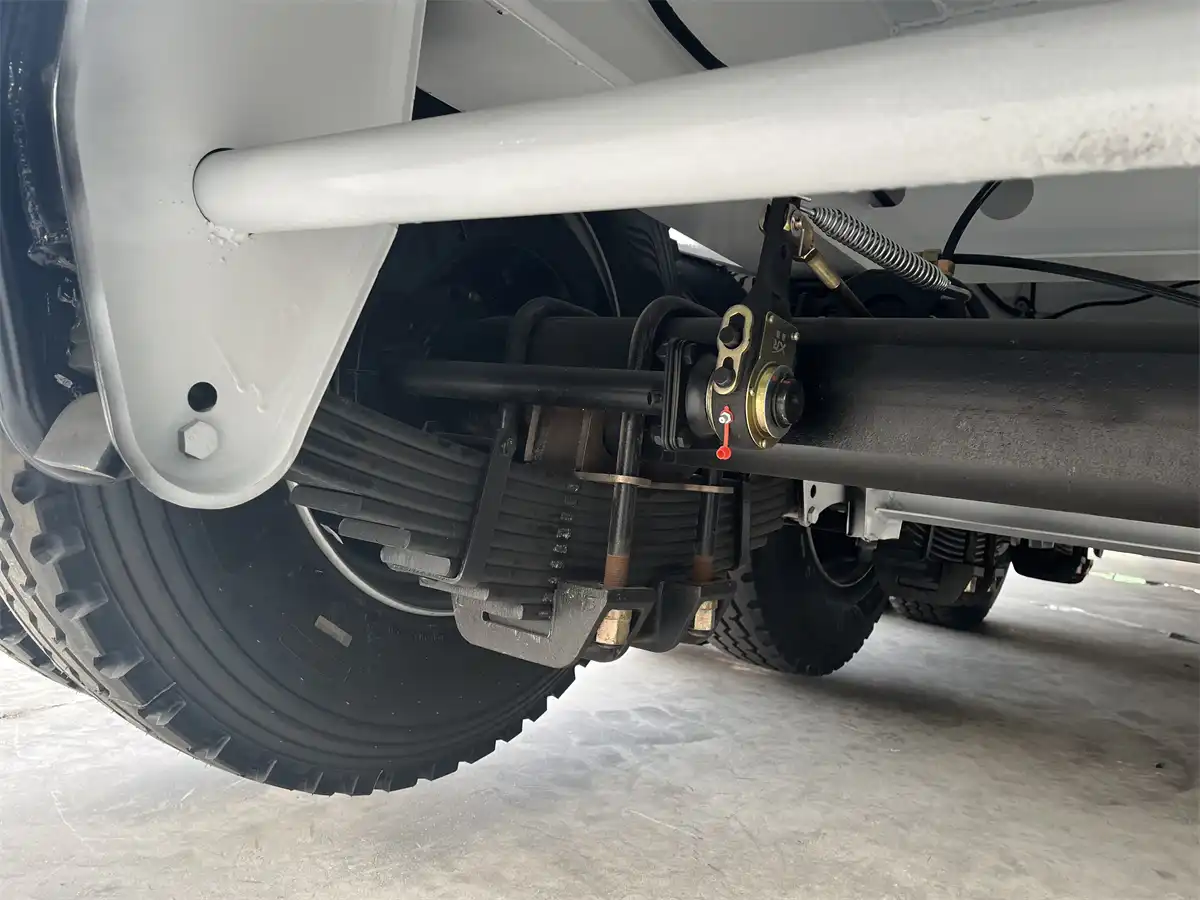

| Suspension System | Leaf Spring Suspension / Air Suspension |
| Brake System | Dual Line Pneumatic Brake System With WABCO Emergency Relay Valve |
| Main Beam | Height 500mm T700 High Strength Steel |
| Chassis | Upper 20mm, Lower 20mm. Mid Web 12mm |
| Rear Loading Ramps | 2 Nos, 720mm Width, Spring Loaded & Manually Operated With Safety Chain |
| Kingpin | 2′ Or 3.5′ Interchangeable, JOST Brand |
| Landing Gear | 28 Tons, Two Speed Manual Operation |
| Electrical System | 1. Voltage: 24v 2. Receptacle: 7 Ways (7 Wire Harness) German Standard |
| Lights And Reflectors | Rear Light, Rear Reflector, Turn Indicative Light, Side Reflector, Fog Lamp, Number Plate Light |
| Painting | Two-component paint, wear-resistant and scratch-resistant, cold and high temperature resistant; Any Color Will Be Available |
| Tool Box | One Tool Box With A Set Of Standard Trailer Tools |
| Spare Tyre Carrier | One Piece Or Two Pieces |

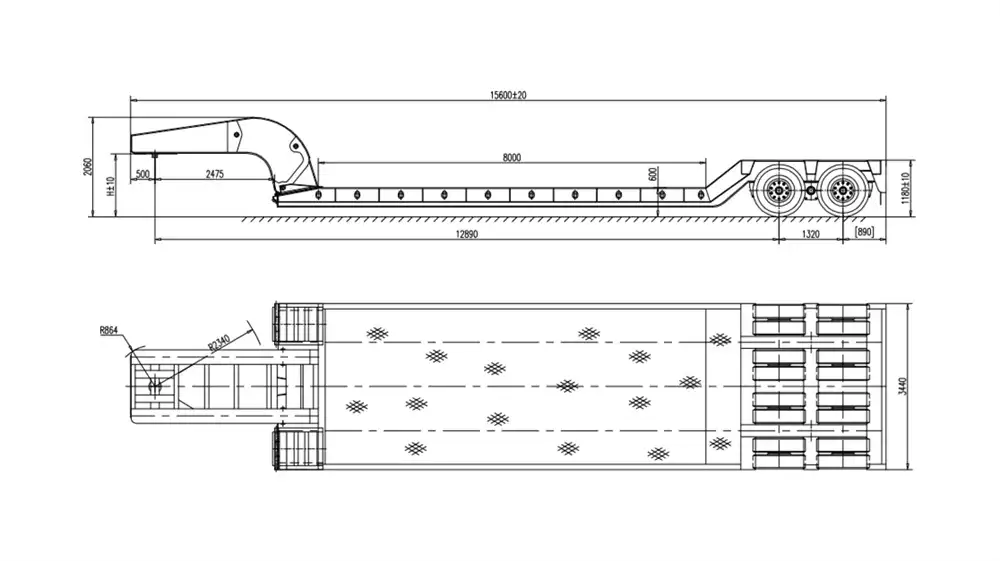

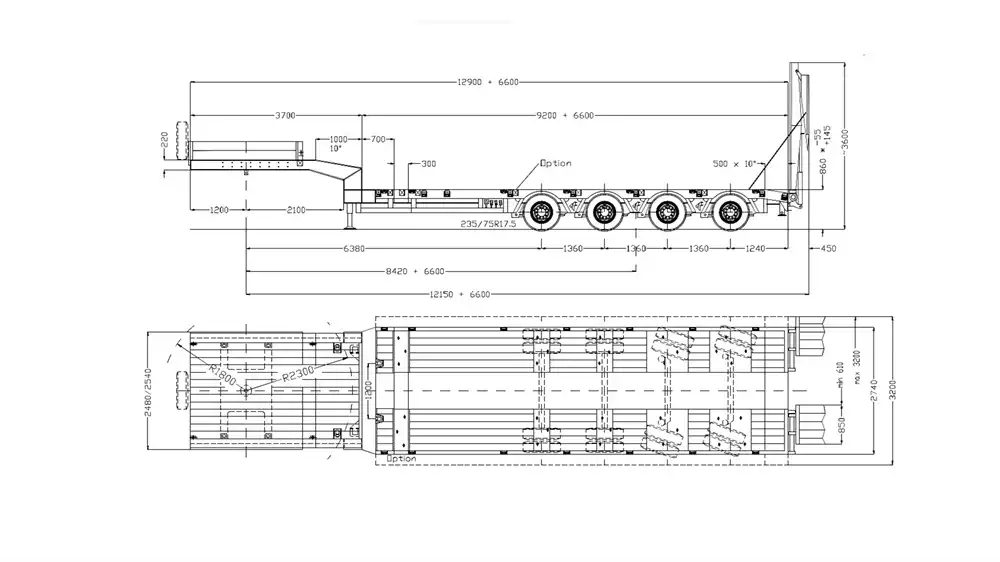

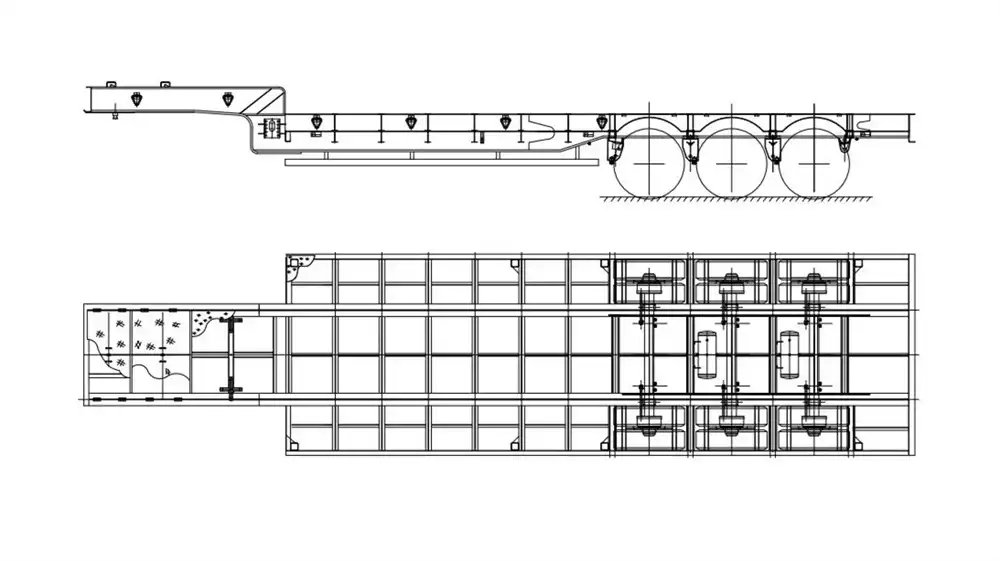

Lowbed Trailer Diagram
Before starting the production of Low Bed Semi-Trailer, our designers will firstly design the drawings and submit them to customers for confirmation. After confirmation, workers will start the production. Please refer to the following drawings for 2 axle/3 axle/4 axle low bed trailer:
Why Choose a LOWBED Trailer from Benchi?
Strong Strength
Benchi Heavy Industry boasts a robust team of over 500 dedicated employees, including 43 professional designers and 27 engineers.
Over the past 20 years, we have been ploughing deeper and deeper into the field of R&D and manufacturing of semi-trailers, and now we have become a leading brand of semi-trailers in China. Every year we take out 30 of our income to research and develop new products, and we have obtained more than 100 invention patents, which is the best proof of our strength.
Lowbed Trailer Patent Certificates
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
PATENTS-CERTIFICATES3
About Us
BENCHI IS THE BEST SEMI-TRAILER MANUFACTURER IN CHINA

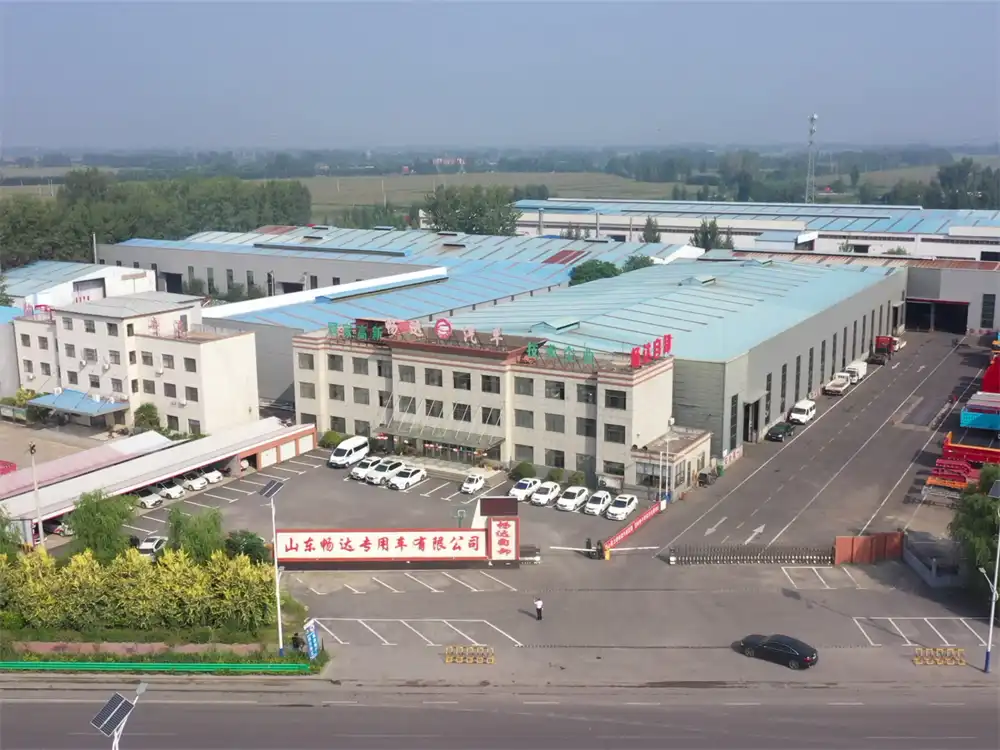

Shandong Benchi Heavy Industry Co., Ltd. since in 2013, located in Liangshan Industrial Park, Shandong Province. It covers an area of 54,000 square meters.
Benchi manufactures and sells semi-trailers, with an annual sales volume of over 1,000 units. The main products include fuel tanker trailers, lowbed trailers, SPMTs, and tipper, container, and box trailers.
Our Mission
Benchi always aims at maximizing product value, adheres to customer demand orientation, provides high-quality products, and wholeheartedly provides product solutions for global customers.
Our Service
We offer low bed semi-trailers in different specifications, including 2-axle, 3-axle and 4-axle low bed trailers, with carrying capacity of 20-80 tonnes. Also it can be customised according to your requirements.
As a professional lowbed trailer manufacturer, we can also customise the trailers exactly according to customers’ requirements.
Unlike dealers, we are an integrated company of industry and trade, and all orders do not need to be purchased from all over the world. We ship the products directly to you after production, no middleman to earn the difference price; directly with the factory to save the communication cost.
All trailers have a 3-year quality guarantee, and we will be responsible for all problems during the use of your trailer.

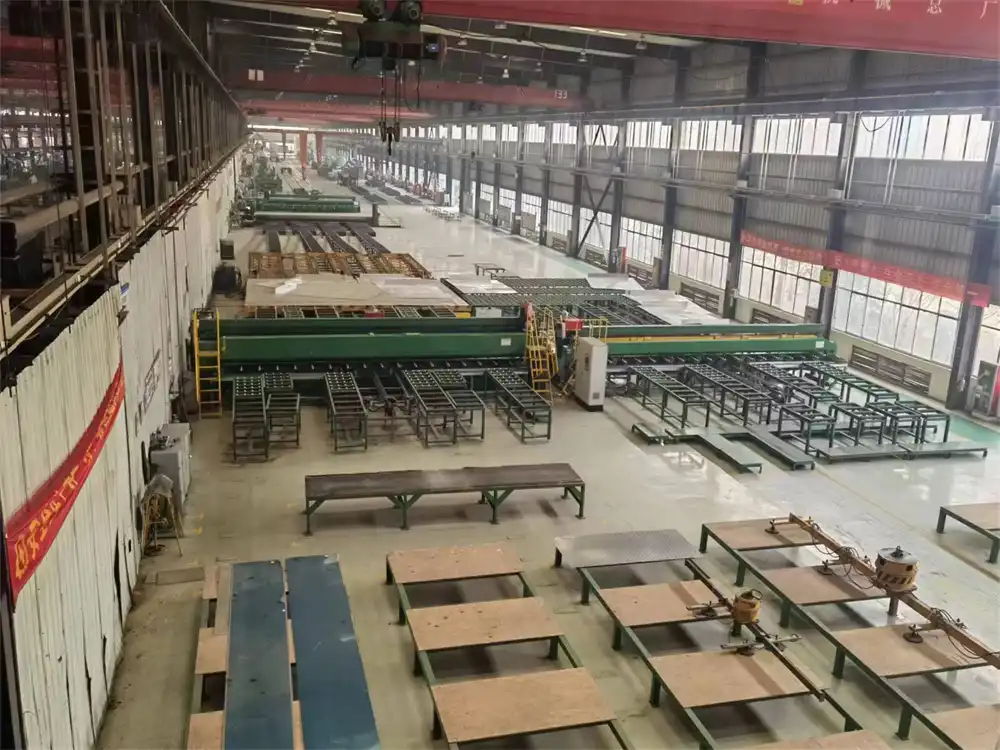

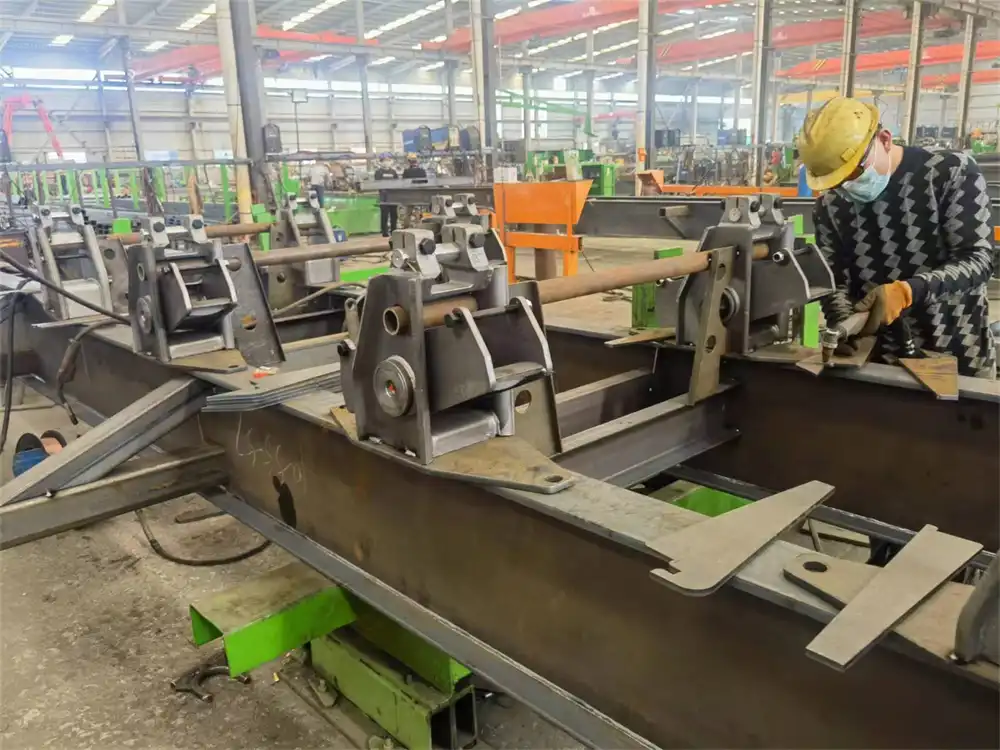

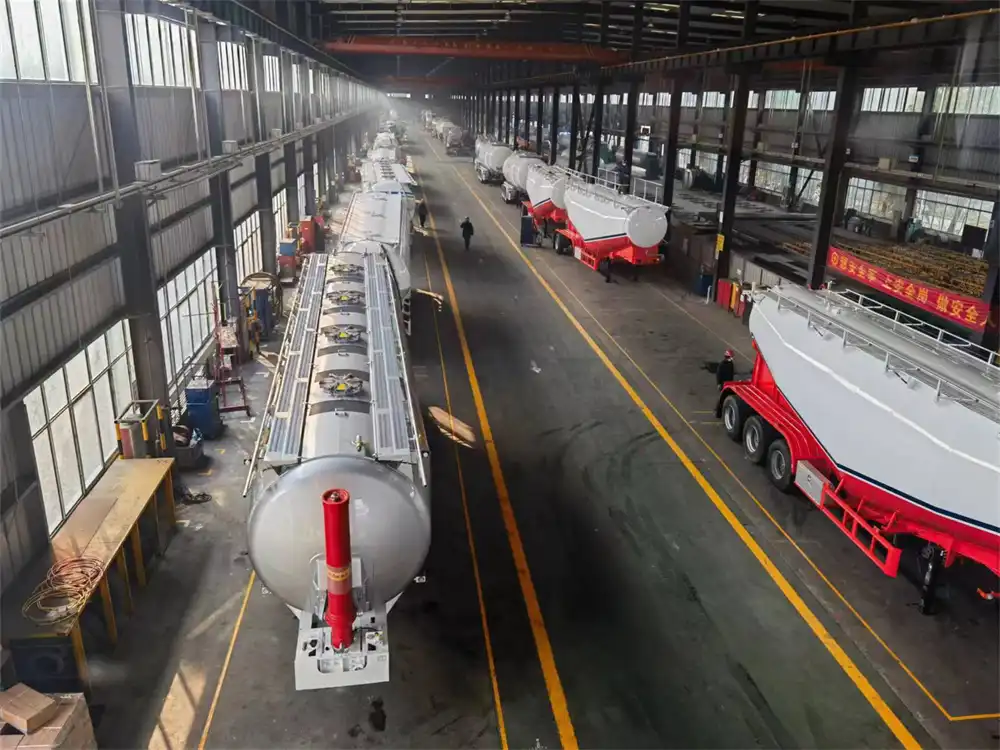

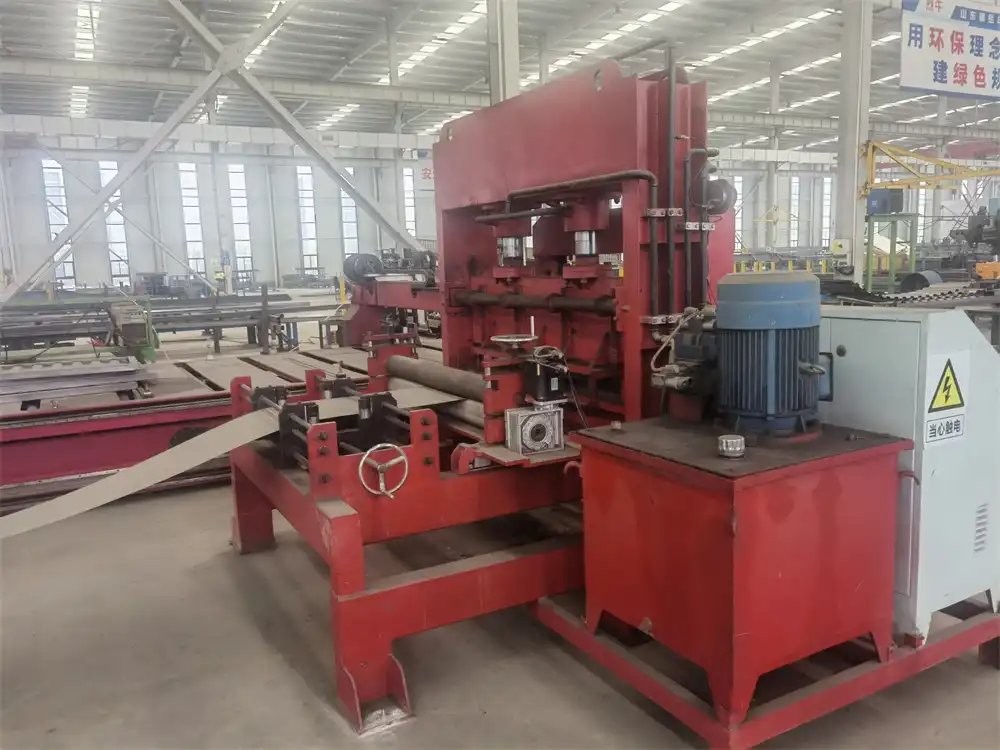

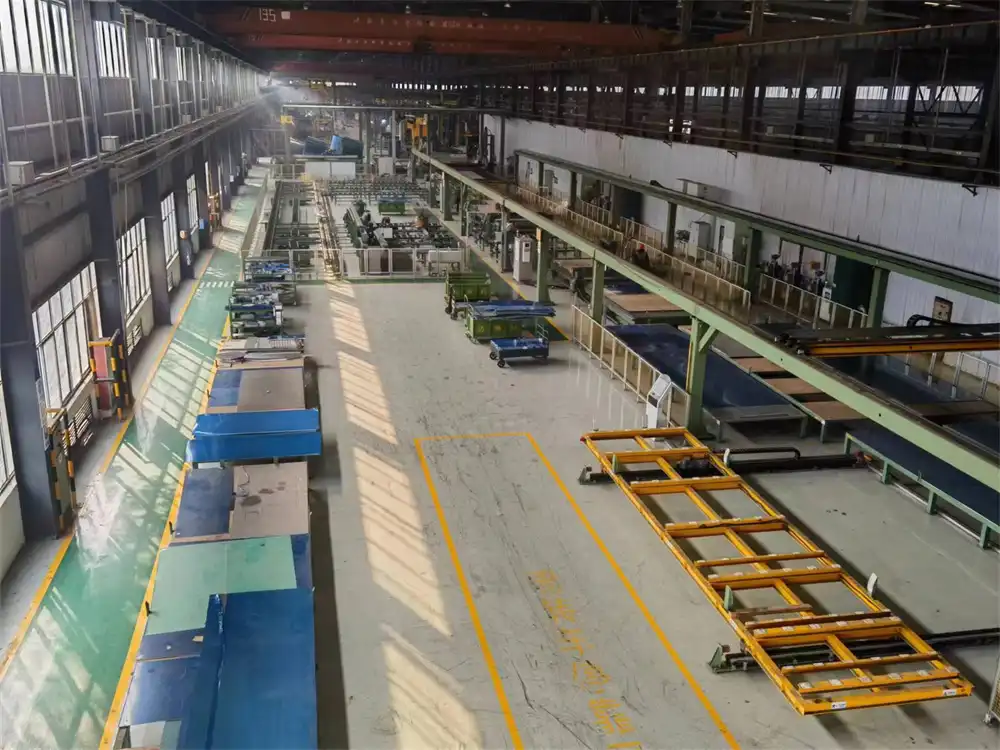

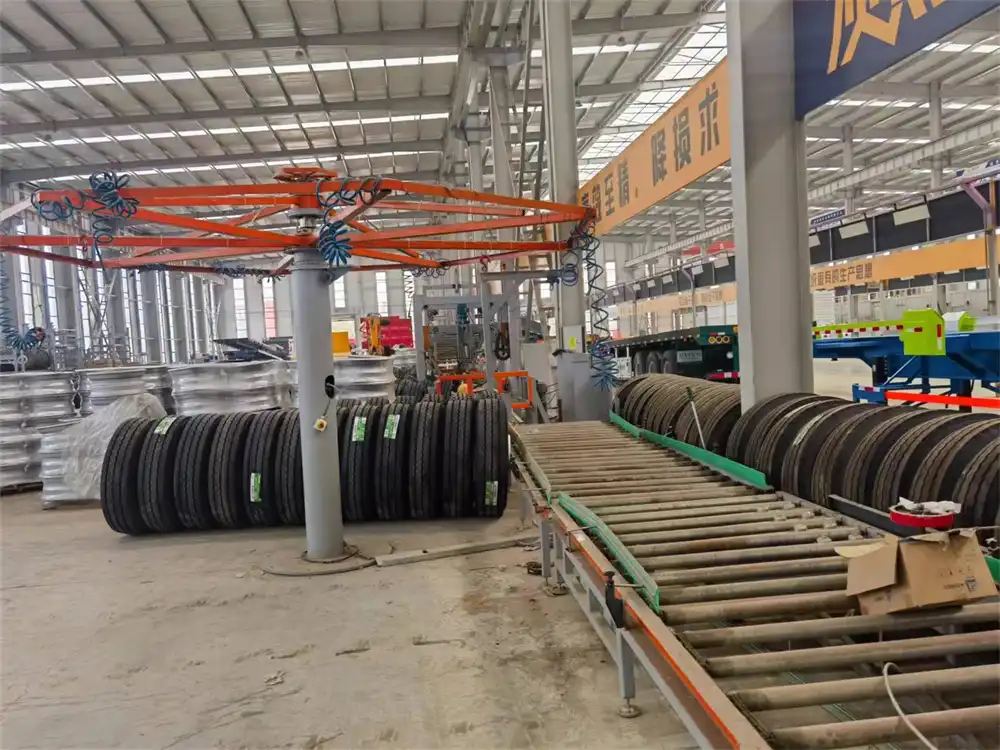

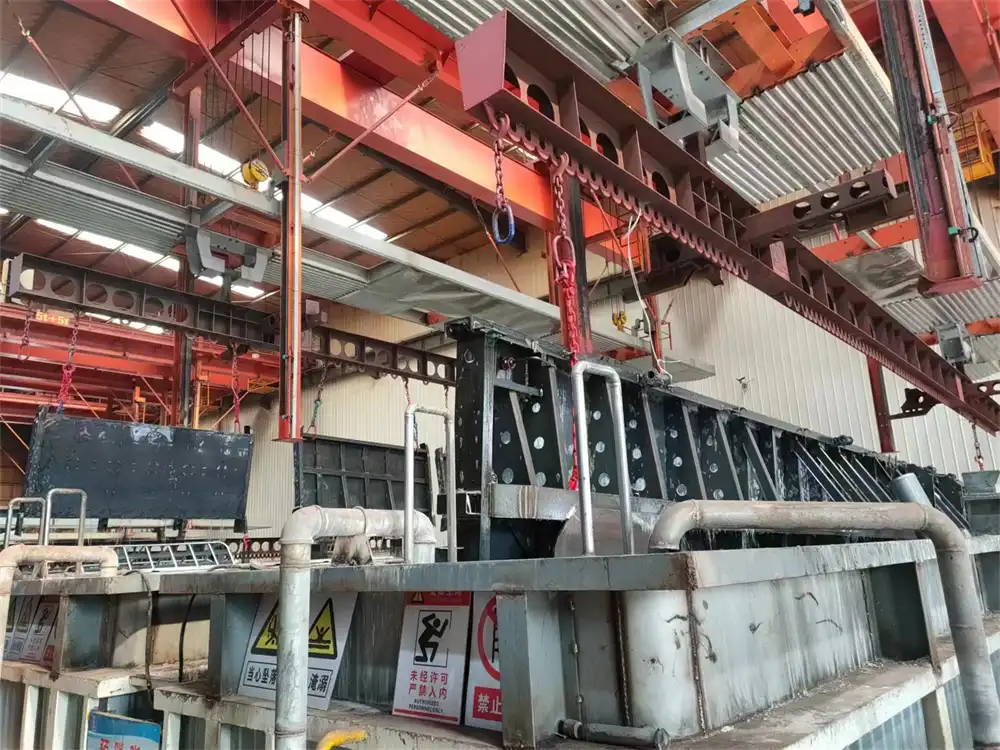

Visit our factory
As a powerful china trailer manufacturer, Benchi is always committed to providing customers with the best quality products and services.
We know that the support of our customers is an important force that makes us grow stronger, so we will do our best to meet your needs. Benchi will provide you with professional product introduction, detailed technical parameters and perfect after-sales service.
We very much welcome you to visit our factory, because this is a great opportunity to show our capabilities to our customers. If you need to make an appointment to visit or consult, please leave your contact information, our staff will contact you as soon as possible. Looking forward to your visit!
