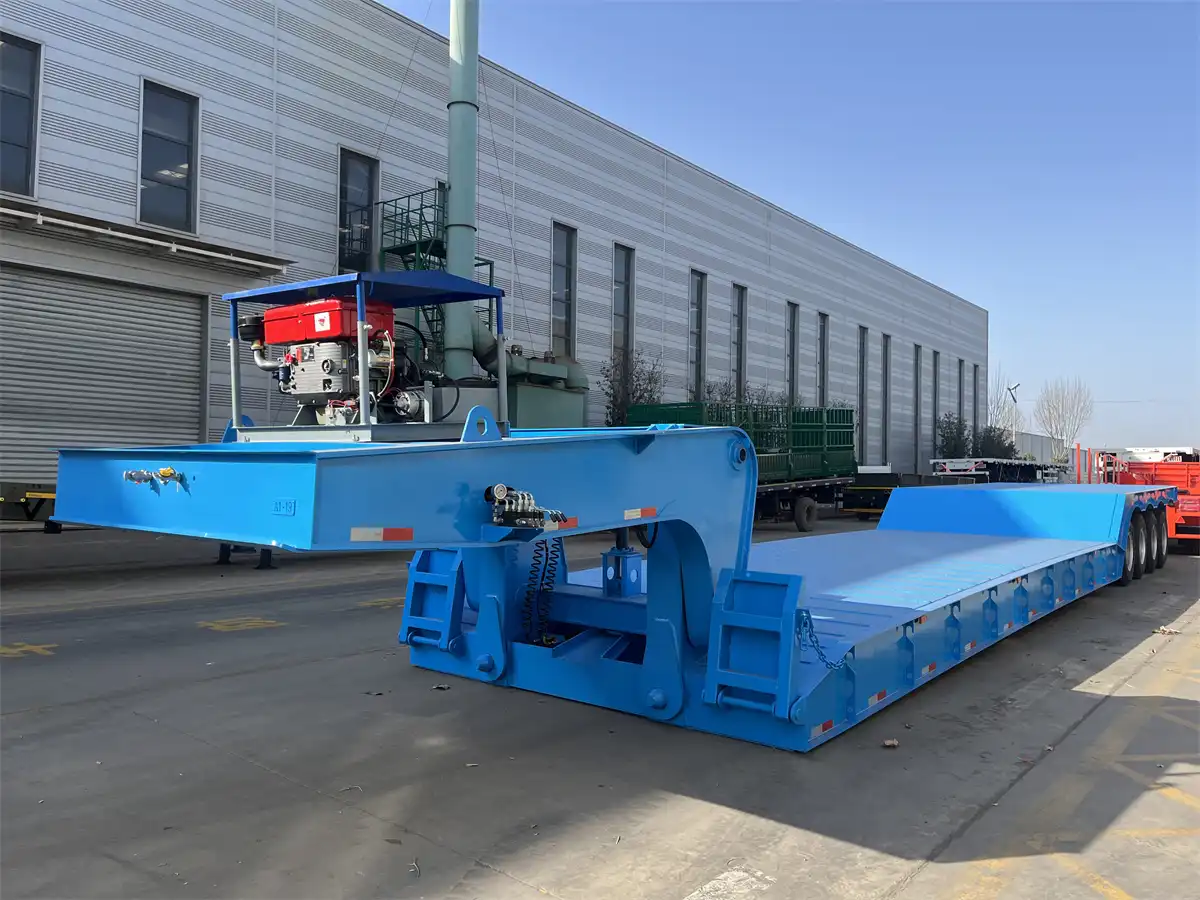

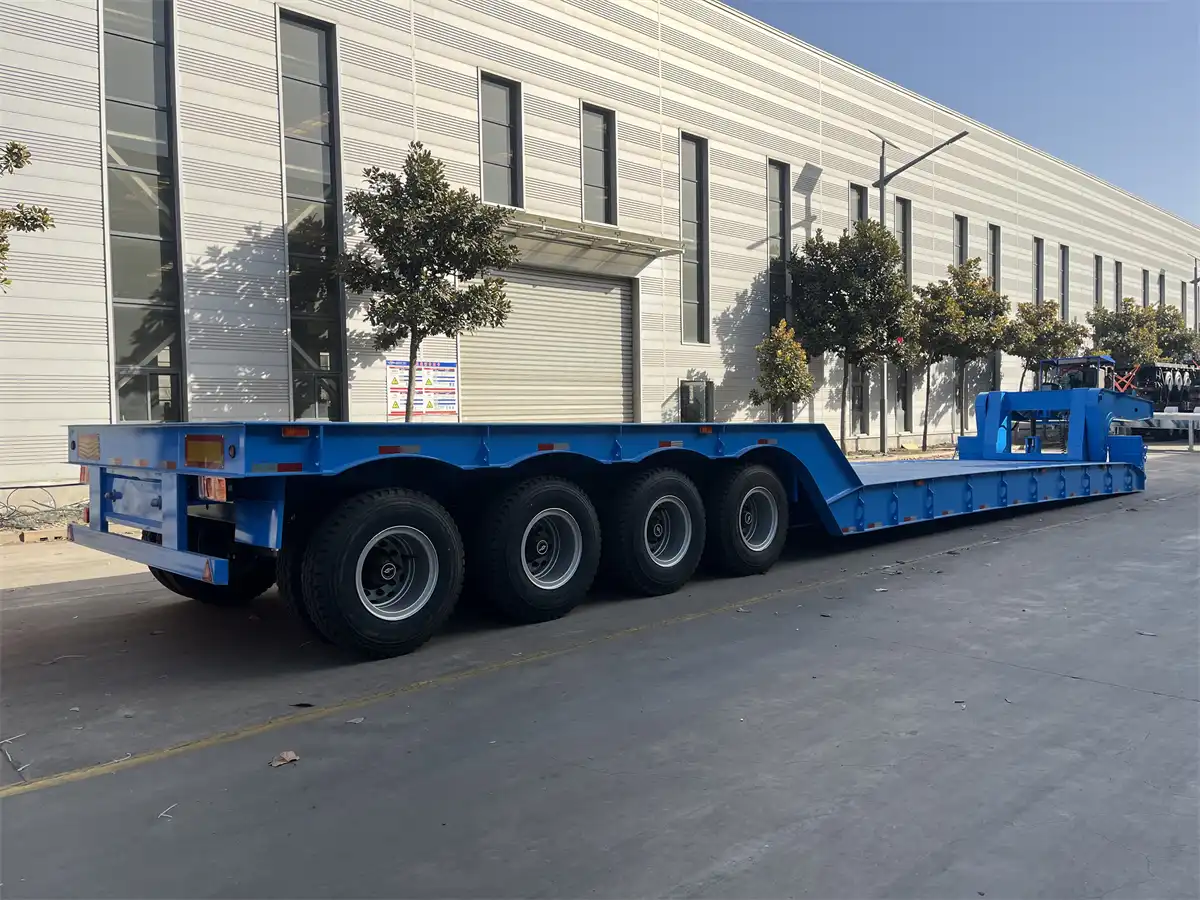

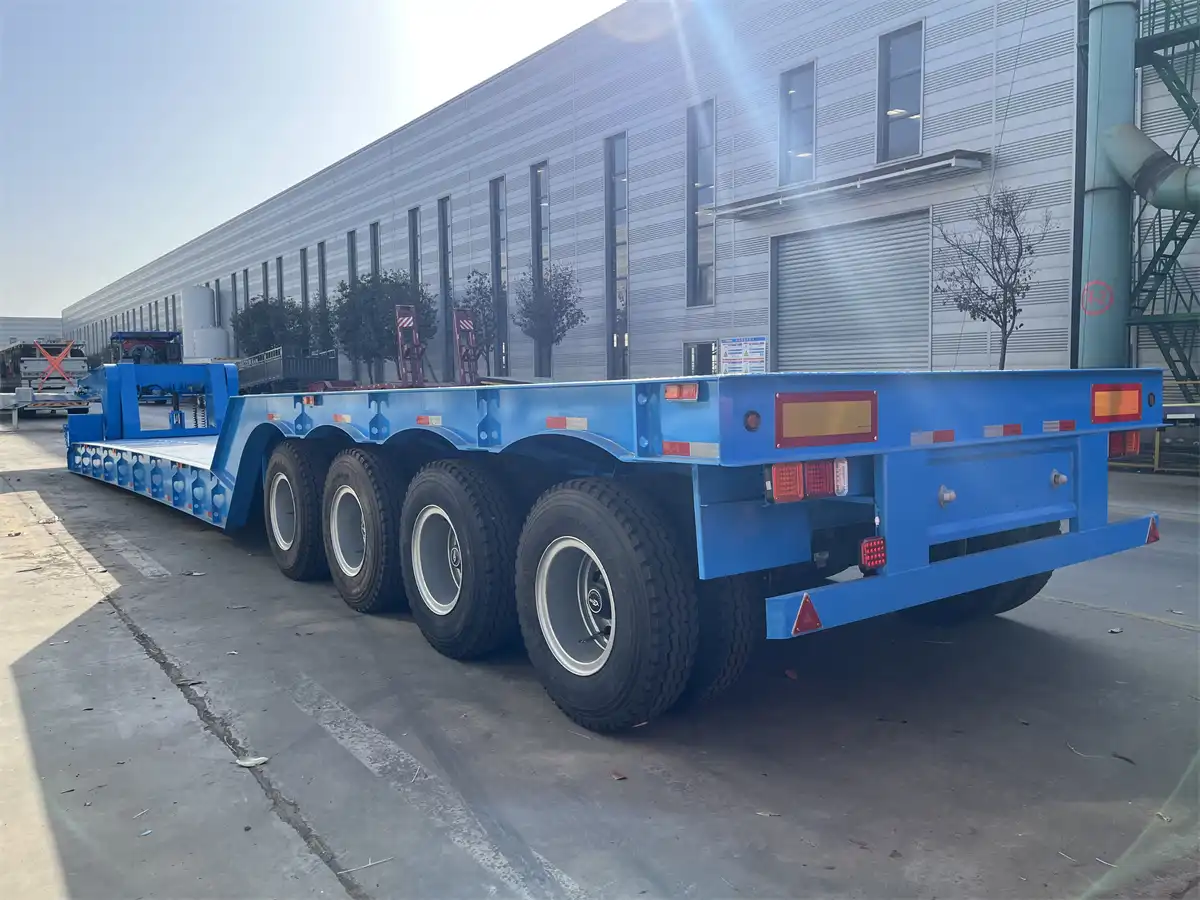

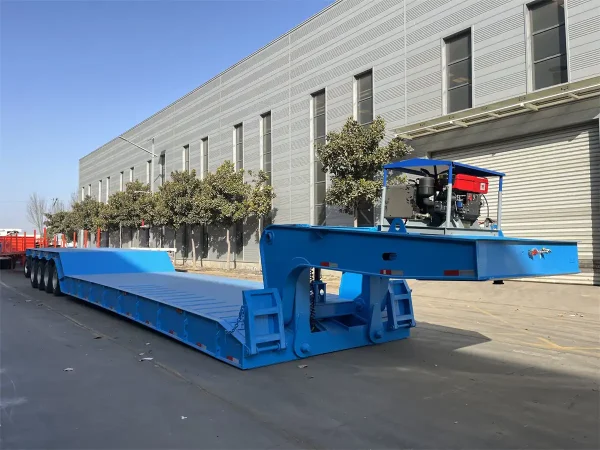

150 Ton Removable Gooseneck Trailer
$27,000.00
Different Parameters, Different Price. Price Reference Only.
Dimension: 15800x3000x2500mm
Loading capacity(T): 150T MAX
Axle: 4 Axle
Delivery: 10-25 Days
Suspension: Mechanical Suspension
Transportation Medium: Engineering Equipment
150 Ton Removable Gooseneck Trailer Specification
| 150 Ton Detachable Gooseneck Trailer Specification | |
| Dimension | 15800mm × 3000mm × 2500mm |
| Loading Capacity (T) | 150T MAX |

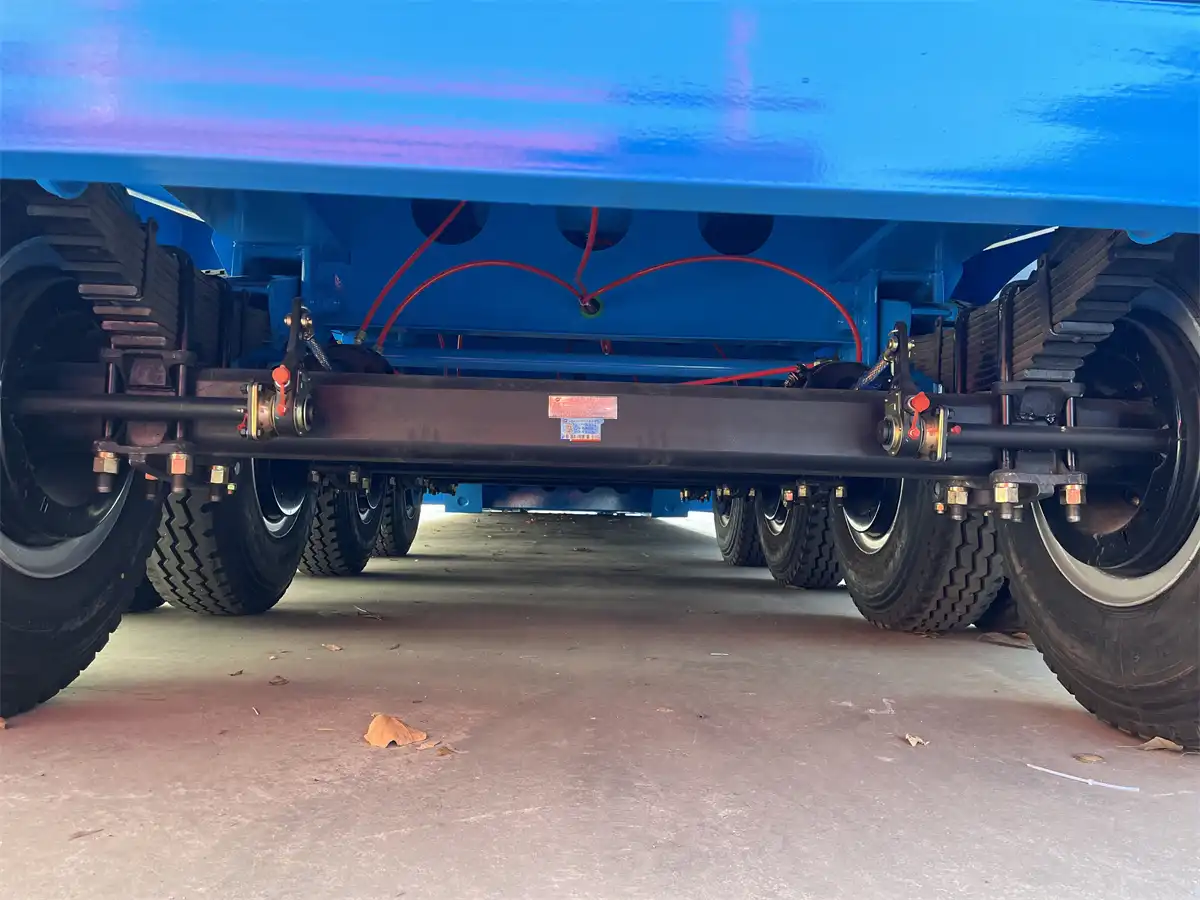

| Axle | 4 axle; 13T/16T/25T, FUWA / BPW / BENCHI Brand |

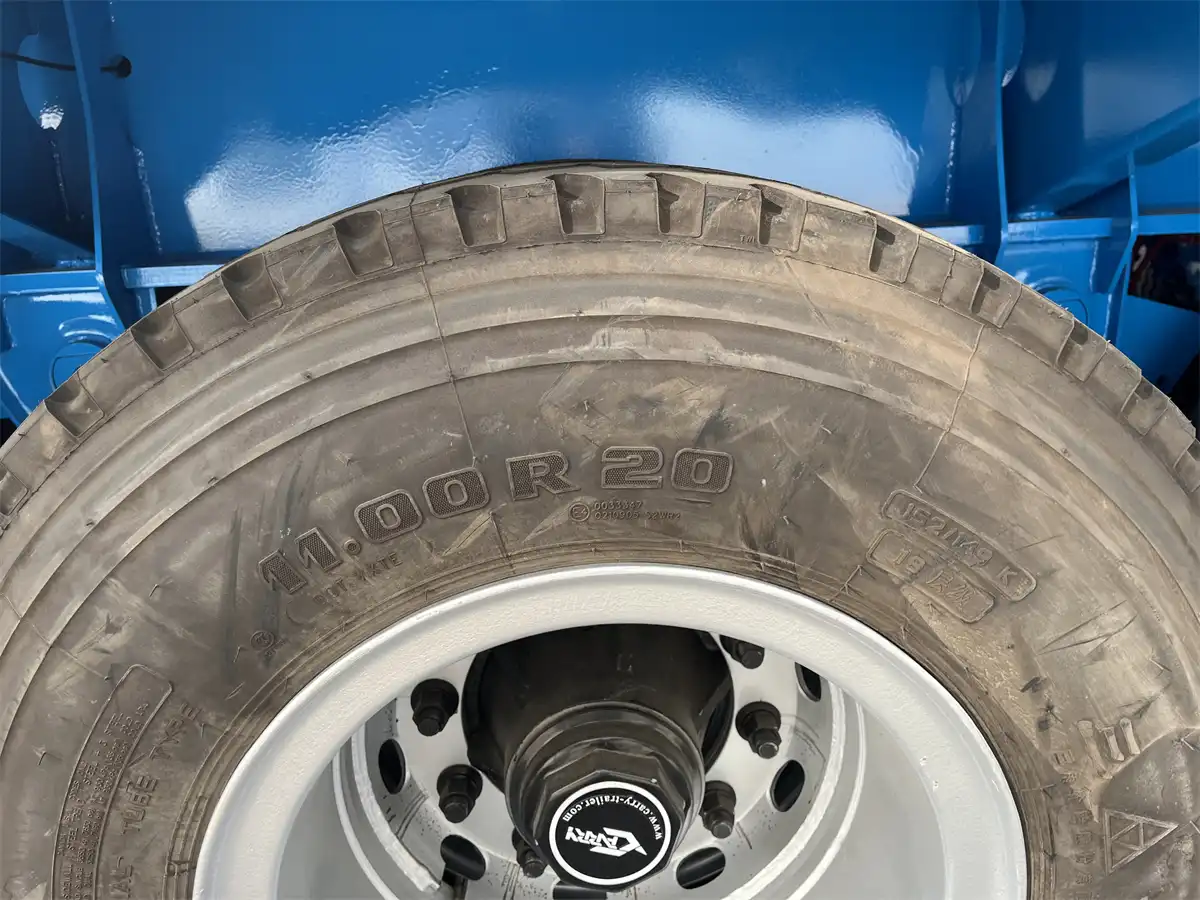

| Tire | 8.25R20 / 10.00R20 / 11.00R20 / 12R22.5 |
| Suspension | Mechanical suspension or air suspension |

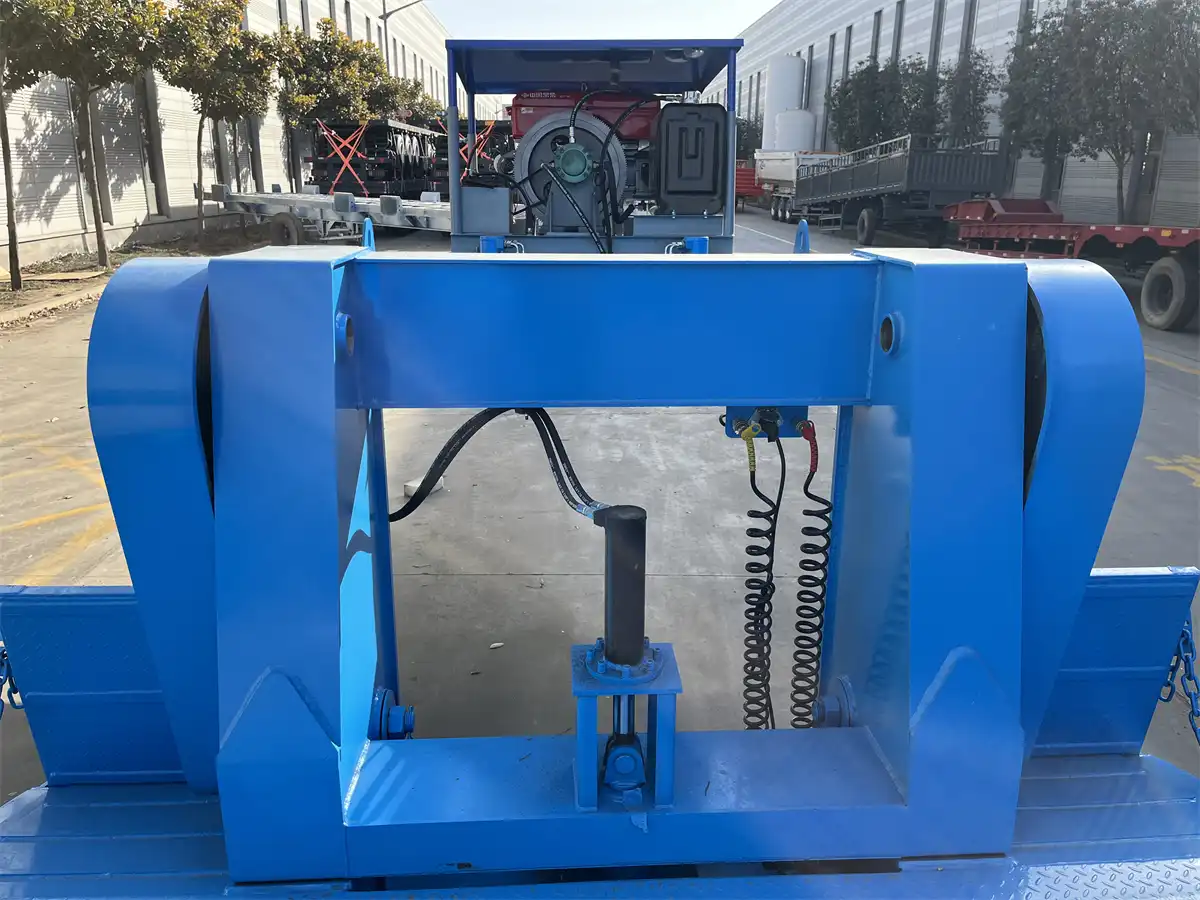

| Kingpin | JOST brand 2.0 or 3.5 inch (bolted or welded type) |
| Tare Weight | About 9.5–19T |
| Main Beam | Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60/T700 high-strength steel |
| Bottom Platform | 5mm thick, checkered plate |

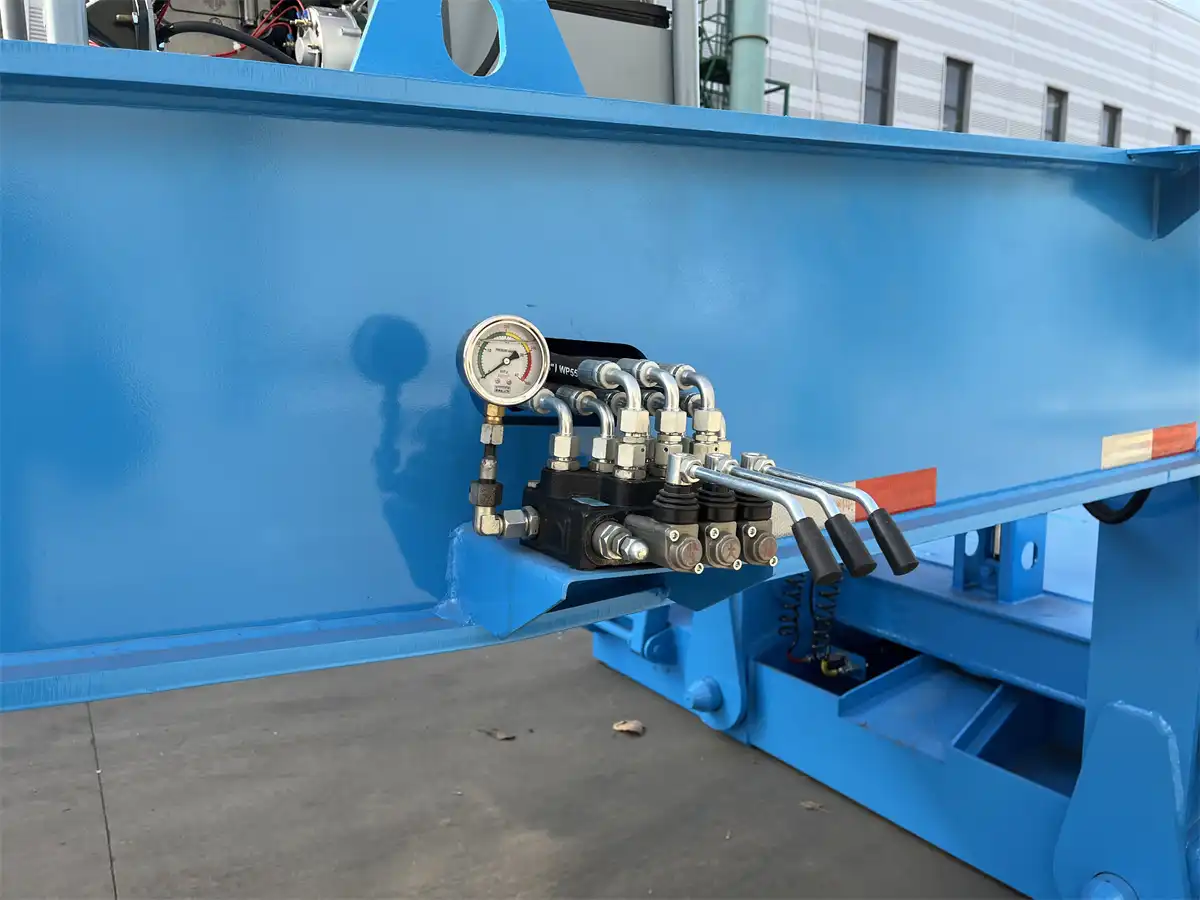

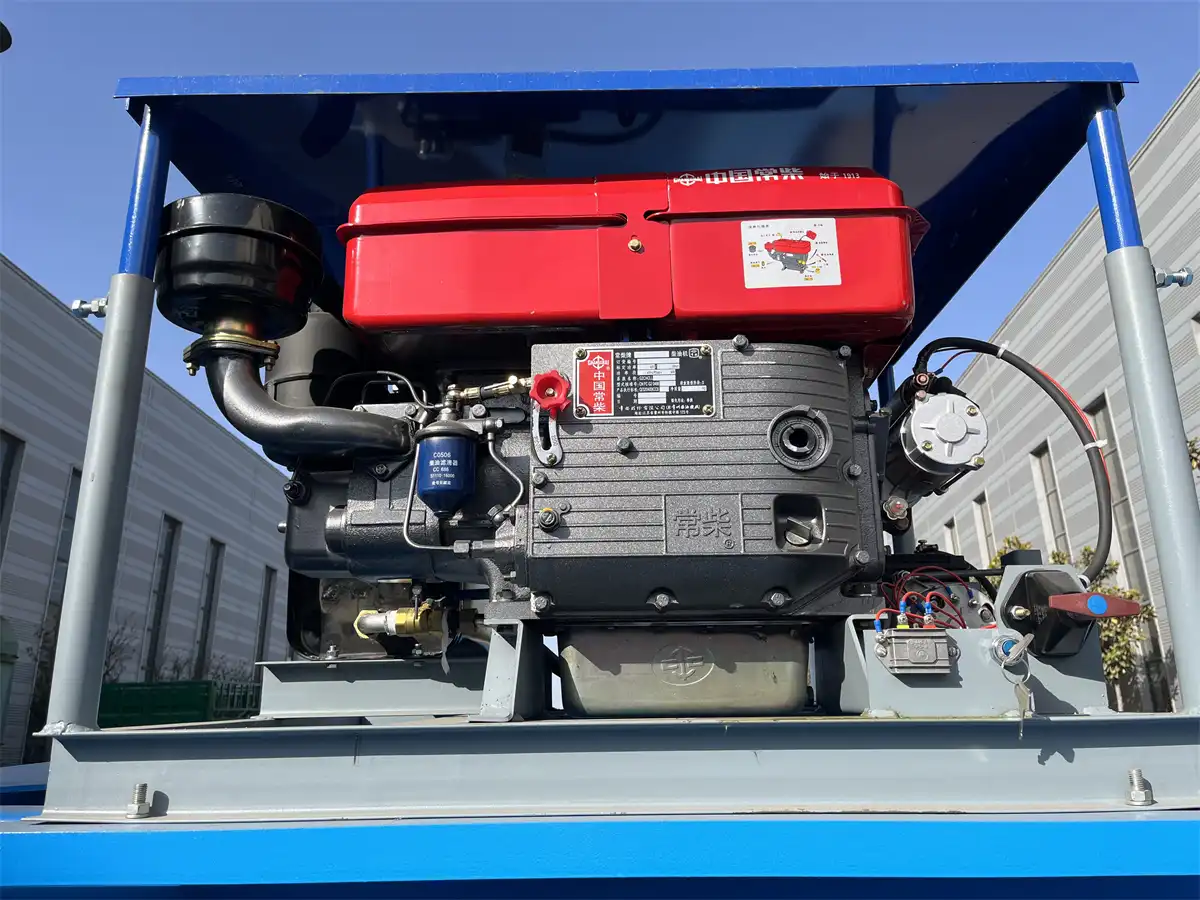

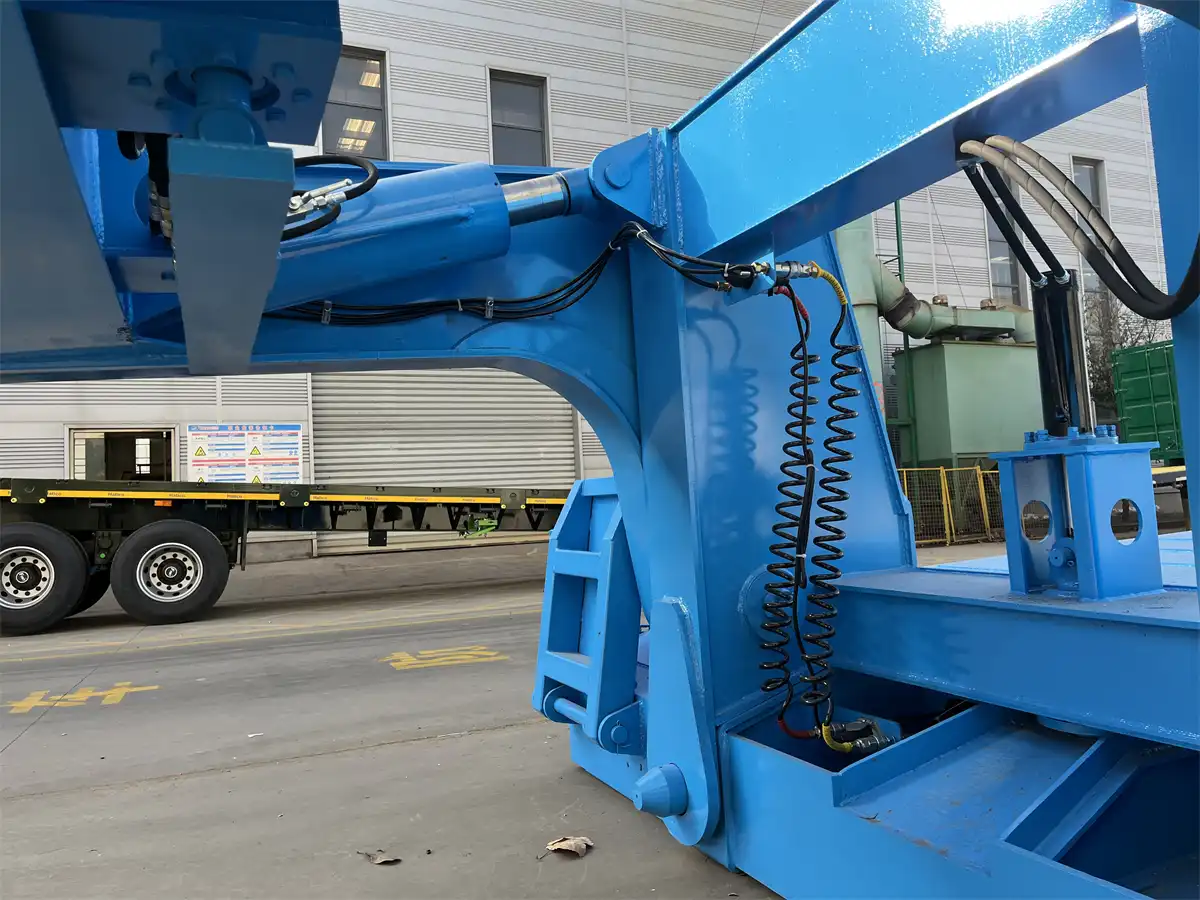

| Hydraulic Cylinder | 12KW diesel engine with hydraulic station |
| ABS | Optional |
| Valve | WABCO valve |
| Light | LED light (specially intended for oversea markets) |
| Voltage | 24V |
| Tool Box | 1 set |
